M6RCBF0630A

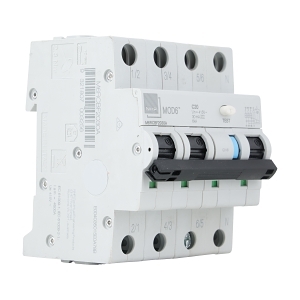

NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 6A 3PN C Curve 30mA Type A 72mm


$174.50 List price: $231.70
+

Brand: NHP

Product Name/Title: NHP MOD6 Residual Current Device - Short body w/ Overcurrent 6kA 6A 3PN C Curve 30mA Type A 72mm

Brand: NHP

SKU: M6RCBF0630A

Alternatively Known As: RCD, RCBO, Earth Leakage Circuit Breaker

Technical Specifications
  • Rated Current: 6 A
  • Rated Voltage: 415 V
  • Rated Leakage Current: 30 mA
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 4 kV
  • Tripping Time: 300 ms
  • Min Service Voltage: 195 V
  • Max Operating Voltage: 440 V
  • Rated Residual Make Break Capacity: 4500 A
  • Number of Poles: 4
  • Electrical Life: 10,000 cycles
  • Rated Insulation Voltage: 500 V
  • Degree of Protection: IP2X
  • Number of Protected Poles: 3
  • Mechanical Life: 20,000 cycles
  • Max Shock Duration: 13 ms
  • Max Shock Acceleration: 30 g
  • Type of Electric Connection: Pin
  • Dimensions (H x L x W): 75mm x 80mm x 72mm
  • Weight: 0.48 kg
Key Features
  • 6kA short circuit breaking capacity
  • 30mA leakage current protection
  • C curve tripping characteristic
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any location requiring electrical safety devices
Standards & Compliance
  • Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
  • Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

Non-Returnable & Non-Cancellable
