NLS0806030

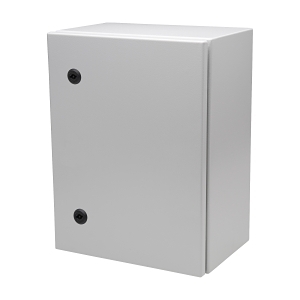

NHP NLINE Enclosure Wall Mount Mild Steel IP66 H800 x W600 x D300mm


$482.50 List price: $640.70
+

Weight: 30.500 kg

Product Name/Title: NHP NLINE Enclosure Wall Mount Mild Steel IP66 H800 x W600 x D300mm

Brand: NHP

SKU: NLS0806030

Alternatively Known As: NLINE Wall Mount Enclosure, Mild Steel Electrical Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Mild steel
  • Surface finishing: Powder coating
  • Enclosure load capacity: 163 kg
  • Door load capacity: 28.5 kg
  • Material thickness: 1.5 mm
  • Degree of protection: IP66
  • Type of lock: DIN 1/4 turn
  • Impact strength: IK10
  • Number of doors: 1
  • Number of locks: 2
  • Gland plates included: Yes
  • With mounting plate: Yes
  • Mounting plate depth adjustable: Yes
  • Dimensions (H x L x W): 800mm x 300mm x 600mm
  • Weight: 30.5 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Constructed from durable mild steel with powder coating finish.
  • Adjustable mounting plate for flexible installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for housing electrical and electronic equipment.
  • Commercial: Ideal for outdoor installations requiring protection from dust and water.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Protects equipment, extending system life and reducing e-waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP NLINE Enclosure Wall Mount Mild Steel IP66 is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust protection.
