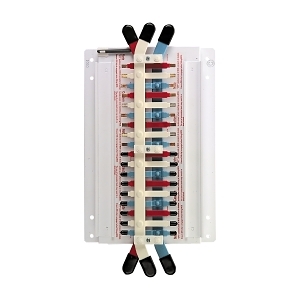

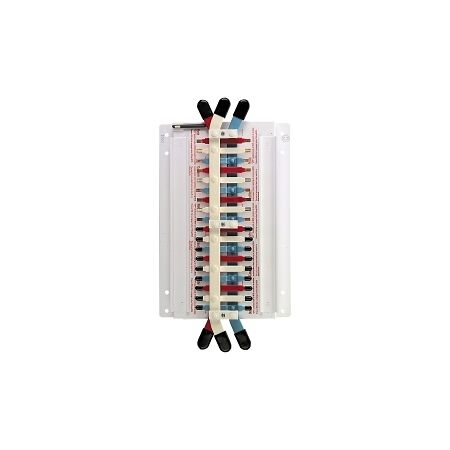

Product Name/Title: NHP POWERMAX Busbar Chassis - General CD DIN-T 250A 24 Way 3Pole Universal
Brand: NHP
SKU: CD224183U
Alternatively Known As: Busbar Distribution Board, Power Distribution Busbar, Electrical Busbar System
- Rated Current: 250 A
- Number of Poles: 24
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.2 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 9 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Dipped housing
- Degree of Protection: IP20
- Dimensions (H x L x W): 260mm x 400mm x 100mm
- Weight: 5 kg
- 250A rated current for high power applications.
- 24 poles for extensive circuit management.
- 3-phase input for efficient power distribution.
- IP20 protection rating for indoor use.
- Professional installation by a qualified electrician is required for safety and compliance.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
- Complies with relevant Australian standards for electrical safety.
- Designed for efficient power distribution, reducing energy loss.
1 year warranty against manufacturing defects.
The NHP POWERMAX Busbar Chassis is available now for immediate purchase. Ideal for industrial and commercial power distribution needs.
