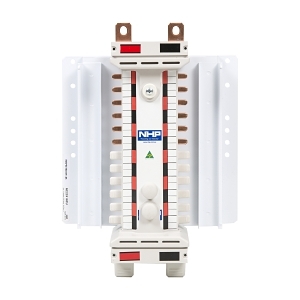

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Bottom Feed Red Black
Brand: NHP
SKU: NC224182BF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 300mm x 100mm
- Weight: 5.0 kg
- 250A rated current for robust power handling.
- 24-way configuration for versatile connections.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with relevant Australian standards for electrical safety.
- Designed for efficient power distribution, reducing energy loss.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Bottom Feed Red Black is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
