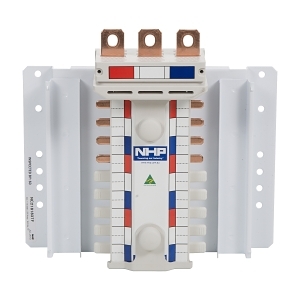

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 30 Way 3Pole Top Feed
Brand: NHP
SKU: NC230183TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 30
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 296mm x 82mm x 300mm
- Weight: 5.0 kg
Key Features
- 250A rated current for high power applications.
- 30 poles with 3-phase input for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 30 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
