Trade Discount 25%
NC260184BF

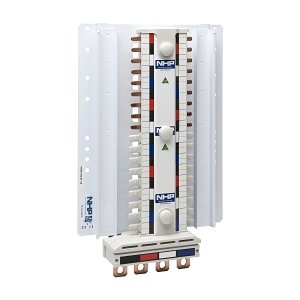

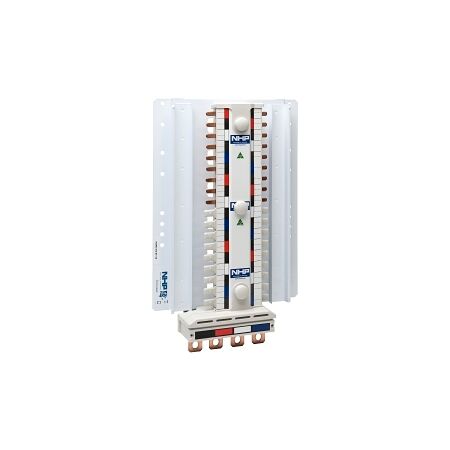

NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Bottom Feed RNWNBN


$2,003.70 List price: $2,660.70
+

Weight: 10.000 kg

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Bottom Feed RNWNBN

Brand: NHP

SKU: NC260184BF

Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, Electrical Busbar System

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 60
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 566mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current with 60 poles for extensive connectivity.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable
