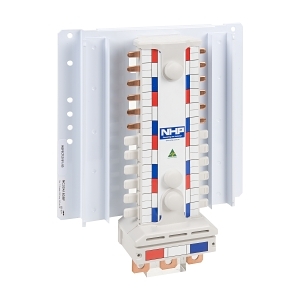

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 78 Way 3Pole Bottom Feed
Brand: NHP
SKU: NC278183BF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 78
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 728mm x 82mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current for robust power handling.
- 78 poles with 18mm pitch for flexible configuration.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection rating for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and control panels
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power distribution, reducing energy loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 78 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and electrical applications.
Non-Returnable & Non-Cancellable
