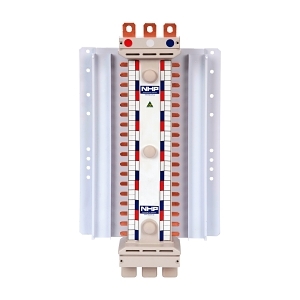

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 84 Way 3Pole Universal
Brand: NHP
SKU: NC284183U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 84
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 782mm x 300mm x 100mm
- Weight: 5.0 kg
Key Features
- 250A rated current for high power applications.
- 84 poles with 18mm pitch for flexible configurations.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 84 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
