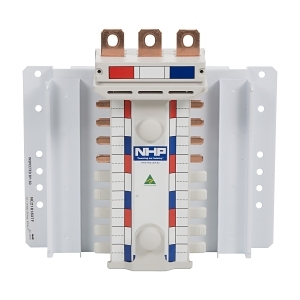

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 12 Way 3Pole Top Feed
Brand: NHP
SKU: NC412183TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, 3-Phase Busbar
- Rated Current: 400 A
- Number of Poles: 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 18mm pitch
- Degree of Protection: IP20
- Dimensions (H x L x W): 134mm x 400mm x 300mm
- Weight: 5 kg
- Rated current of 400A with 12 poles for efficient power distribution.
- 3-phase input for enhanced performance.
- Encapsulated material housing for durability and safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for wiring rules and electrical installation.
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 12 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
