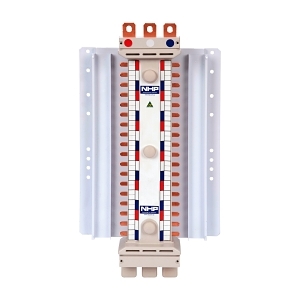

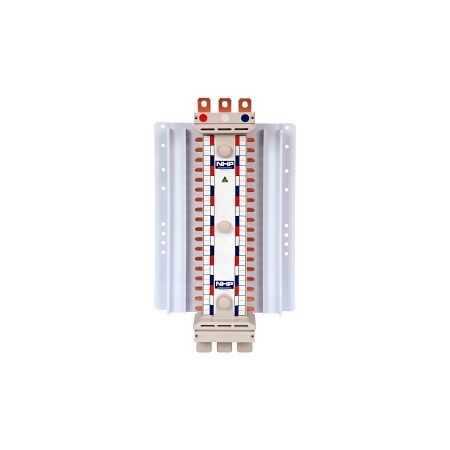

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 18 Way 3Pole Universal
Brand: NHP
SKU: NC418183U
Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar
- Rated Current: 400 A
- Number of Poles: 18
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 82mm x 400mm x 188mm
- Weight: 5 kg
- Rated current of 400A for high power applications.
- 18-way configuration for versatile connections.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection rating for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Any application requiring robust busbar systems
- Complies with relevant Australian standards for electrical safety.
- Designed for energy efficiency in power distribution.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 18 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
