NC424184U

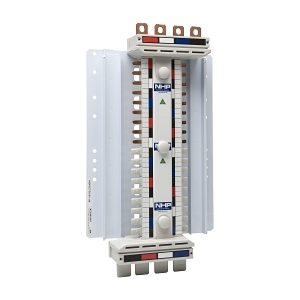

NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Universal RNWNBN


$1,841.20 List price: $2,444.90
+

Weight: 5.000 kg

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Universal RNWNBN

Brand: NHP

SKU: NC424184U

Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, Electrical Busbar System

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 24
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 30 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 25 kA
  • Short Time Withstand Current (ICW) 1 sec: 13 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 242mm x 400mm x 100mm
  • Weight: 5.0 kg
Key Features
  • Rated current of 400A with 24 poles for versatile applications.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in large buildings
  • General: Suitable for various electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Universal is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable
