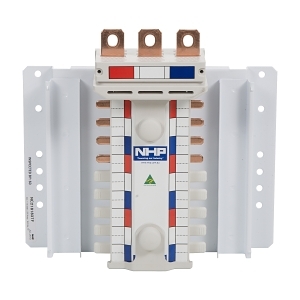

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 30 Way 3Pole Top Feed
Brand: NHP
SKU: NC430183TF
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, Electrical Busbar System
- Rated Current: 400 A
- Number of Poles: 30
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 296mm x 82mm x 300mm
- Weight: 5 kg
- 400A rated current for high power applications.
- 30-way configuration for versatile connections.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection rating for indoor use.
- Professional installation by a qualified electrician is required for safety and compliance.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and improves overall system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 30 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
