NC484183U

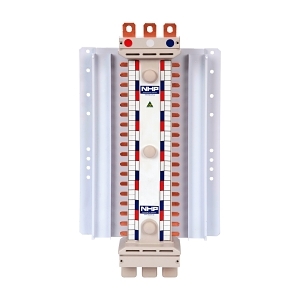

NHP POWERMAX DIN-T NC Busbar Chassis 400A 84 Way 3Pole Universal


$2,134.30 List price: $2,834.10
+

Weight: 10.000 kg

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 84 Way 3Pole Universal

Brand: NHP

SKU: NC484183U

Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 84
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.1 sec): 30 kA
  • Short Time Withstand Current (0.3 sec): 25 kA
  • Short Time Withstand Current (1 sec): 13 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 782mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 400A rated current for high power applications.
  • 84 poles for extensive circuit management.
  • 3-phase input for balanced power distribution.
  • Encapsulated material housing for durability.
  • IP20 protection rating suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 84 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
