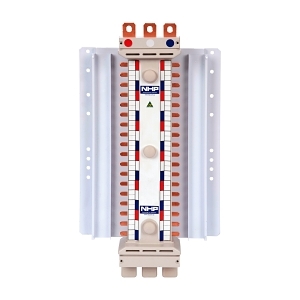

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A 12 Way 27mm 3Pole Universal
Brand: NHP
SKU: NCH412273U
Alternatively Known As: NHP Busbar, DIN-T Busbar, Power Distribution Busbar
- Rated Current: 400 A
- Number of Poles: 12
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 188mm x 400mm x 300mm
- Weight: 5 kg
- Rated current of 400A for high power applications.
- 12-way configuration with 27mm pitch for flexible installation.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for any application requiring robust busbar systems
- Complies with AS/NZS 3000 for wiring rules and electrical installations.
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A 12 Way 27mm 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
