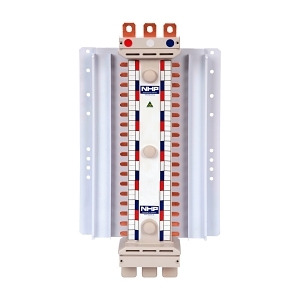

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A 24 Way 27mm 3Pole Universal
Brand: NHP
SKU: NCH424273U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 3-Phase Busbar System
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 30 kA
- Short Time Withstand Current (ICW) 0.3 sec: 25 kA
- Short Time Withstand Current (ICW) 1 sec: 13 kA
- Assembly Arrangement: 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 82mm x 27mm x 350mm
- Weight: 5 kg
Key Features
- 400A rated current for high power applications.
- 24-way configuration for versatile connections.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection rating suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring robust busbar systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power distribution, reducing energy loss.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A 24 Way 27mm 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
