NCH4123027183TF

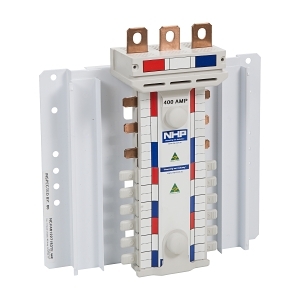

NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 30 Way 18mm 3Pole Top Feed

$1,298.30 List price: $1,723.90
+ −
30 Days Return Delivery Options
Weight: 5.000 kg

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 30 Way 18mm 3Pole Top Feed

Brand: NHP

SKU: NCH4123027183TF

Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 42
  • Number of Poles (18mm pitch): 30
  • Number of Poles (27mm pitch): 12
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW 0.1 sec): 30 kA
  • Short Time Withstand Current (ICW 0.3 sec): 25 kA
  • Short Time Withstand Current (ICW 1 sec): 13 kA
  • Assembly Arrangement: Hybrid 18mm and 27mm pitch
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 458mm x 300mm x 100mm
  • Weight: 5.0 kg
Key Features
  • Hybrid design with 12 ways at 27mm pitch and 30 ways at 18mm pitch.
  • Rated current of 400A for robust power handling.
  • 3-phase input for efficient power distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and control panels
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Encapsulated material housing for enhanced durability and safety.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and electrical applications.
