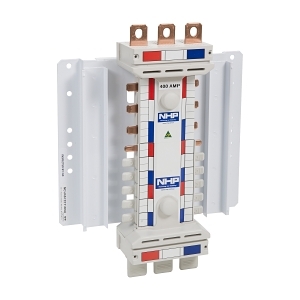

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 12 Way 27mm 42 Way 18mm 3Pole Universal
Brand: NHP
SKU: NCH4124227183U
Alternatively Known As: Busbar Chassis, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 54
- Number of Poles (18mm pitch): 42
- Number of Poles (27mm pitch): 12
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 566mm x 82mm x 100mm
- Weight: 5.0 kg
Key Features
- Hybrid assembly arrangement with 18mm and 27mm pitch.
- Rated current of 400A suitable for high-demand applications.
- IP20 degree of protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
