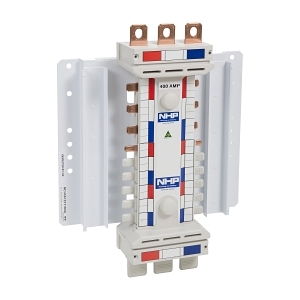

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 24 Way 18mm 3Pole Universal
Brand: NHP
SKU: NCH462427183U
Alternatively Known As: NHP Busbar, DIN-T Busbar Chassis, Power Distribution Busbar
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 24
- Number of Poles (18mm pitch): 24
- Number of Poles (27mm pitch): 6
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Assembly Arrangement: Hybrid 18mm and 27mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 323mm x 400mm x 200mm
- Weight: 5 kg
Key Features
- 400A rated current for robust power handling.
- Hybrid design accommodating both 18mm and 27mm pitch.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
- Complies with AS/NZS 3000 for electrical installation safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NCH Busbar Chassis is available now for immediate purchase. Ideal for industrial and electrical applications.
