NCH463627183TF

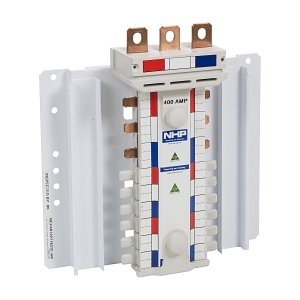

NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 36 Way 18mm 3Pole Top Feed

$1,164.90 List price: $1,546.80
+ −
30 Days Return Delivery Options
Weight: 5.000 kg

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 36 Way 18mm 3Pole Top Feed

Brand: NHP

SKU: NCH463627183TF

Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications
  • Rated Current: 400 A
  • Number of Poles: 42
  • Number of Poles (18mm pitch): 36
  • Number of Poles (27mm pitch): 6
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW 0.1 sec): 30 kA
  • Short Time Withstand Current (ICW 0.3 sec): 25 kA
  • Short Time Withstand Current (ICW 1 sec): 13 kA
  • Assembly Arrangement: Hybrid 18mm and 27mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 431mm x 300mm x 200mm
  • Weight: 5 kg
Key Features
  • Hybrid design with 18mm and 27mm pitch for versatile applications.
  • Rated current of 400A suitable for high-demand environments.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
  • Complies with AS/NZS 3000 for electrical installation safety.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial and electrical applications requiring reliable power distribution.
