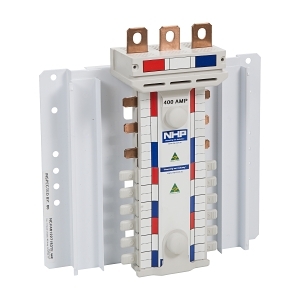

Product Name/Title: NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid 6 Way 27mm 48 Way 18mm 3Pole Top Feed
Brand: NHP
SKU: NCH464827183TF
Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar
- Rated Current: 400 A
- Number of Poles: 54
- Number of Poles (18mm pitch): 48
- Number of Poles (27mm pitch): 6
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW 0.1 sec): 30 kA
- Short Time Withstand Current (ICW 0.3 sec): 25 kA
- Short Time Withstand Current (ICW 1 sec): 13 kA
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 539mm x 300mm x 100mm
- Weight: 5.0 kg
- Hybrid assembly arrangement with 18mm and 27mm pitch.
- Rated current of 400A for robust power handling.
- IP20 degree of protection for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
- Complies with AS/NZS 3000 for electrical installation safety.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NCH Busbar Chassis 400A Hybrid is available now for immediate purchase. Ideal for industrial power distribution applications.
