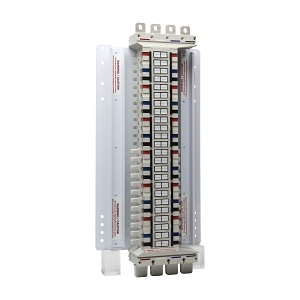

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 3Pole Plus Neutral Universal RWBN
Brand: NHP
SKU: GB224183PNU
Alternatively Known As: DIN-T Busbar, Isolation Busbar, Power Distribution Busbar
- Rated Current: 250 A
- Number of Poles: 24
- Number of Phases Input: 3P+N
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 248mm x 300mm x 100mm
- Weight: 5 kg
- 250A rated current with 24 poles for versatile applications.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and control panels
- Complies with AS/NZS 3000 for electrical installations.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 3Pole Plus Neutral Universal RWBN is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
