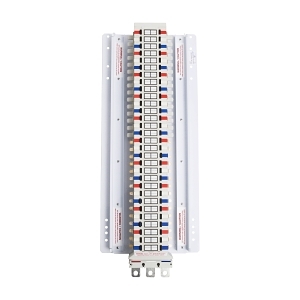

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 60 Way 3Pole Bottom Feed
Brand: NHP
SKU: GB260183BF
Alternatively Known As: Isolation Busbar, DIN-T Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 60
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 572mm x 300mm x 100mm
- Weight: 10 kg
Key Features
- 250A rated current for high power applications.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency in power distribution.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 60 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
