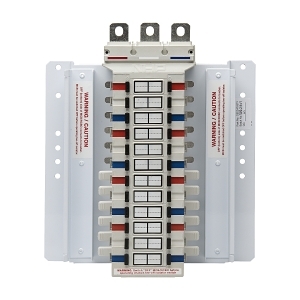

NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 2Pole Top Feed Red Black


$3,511.50 List price: $4,662.80
+

Weight: 5.000 kg

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 2Pole Top Feed Red Black

Brand: NHP

SKU: GB296182TF

Alternatively Known As: DIN-T Busbar, Isolation Busbar, Power Distribution Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 96
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 896mm x 300mm x 200mm
  • Weight: 5.0 kg
Key Features
  • Rated current of 250 A with 96 poles for extensive connectivity.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 2Pole Top Feed Red Black is available now for immediate purchase. Ideal for industrial power distribution applications.

Non-Returnable & Non-Cancellable
