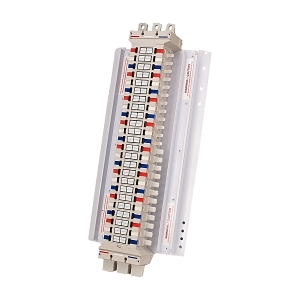

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Universal
Brand: NHP
SKU: GB296183U
Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN-T Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 896mm x 300mm x 200mm
- Weight: 5.0 kg
Key Features
- 250A rated current for high-capacity applications.
- 96 poles for extensive circuit management.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
