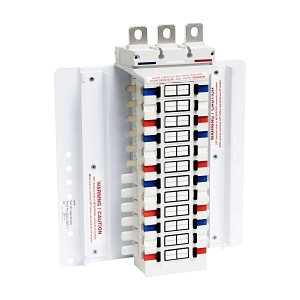

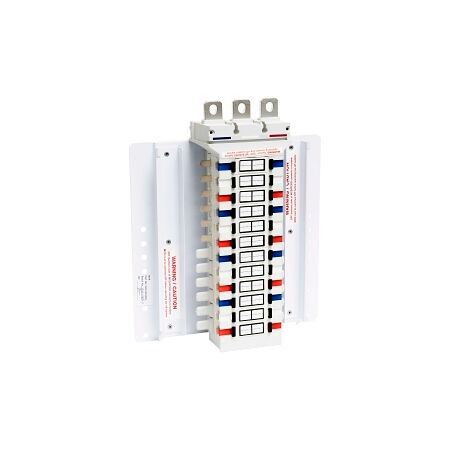

NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 24 Way 3Pole Bottom Feed


$1,191.20 List price: $1,581.70
+

Weight: 5.000 kg

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 24 Way 3Pole Bottom Feed

Brand: NHP

SKU: GB224183BF

Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN-T Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 24
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Tee Off Isolator: Yes
  • Capped Tee Offs: 0.5
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 248mm x 300mm x 100mm
  • Weight: 5 kg
Key Features
  • 250A rated current for high power applications.
  • 3-phase input for efficient power distribution.
  • Encapsulated material housing for durability.
  • IP20 degree of protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in large buildings
  • General: Any application requiring robust busbar systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Complies with AS/NZS 3000 for electrical installation safety.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 24 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
