M6NC224183BF

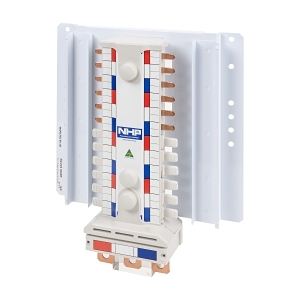

NHP POWERMAX MOD6 Busbar Chassis 250A 24 Way 3Pole Bottom Feed


$526.10 List price: $698.50
+

Weight: 5.000 kg

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 24 Way 3Pole Bottom Feed

Brand: NHP

SKU: M6NC224183BF

Alternatively Known As: MOD6 Busbar, 250A Busbar Chassis, 3 Pole Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 24
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 25 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 242mm x 500mm x 100mm
  • Weight: 5 kg
Key Features
  • 250A rated current for high power applications.
  • 24 poles with 3-phase input for versatile configurations.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection rating suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for efficient power distribution, reducing energy loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX MOD6 Busbar Chassis 250A 24 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
