M6NC272183TF

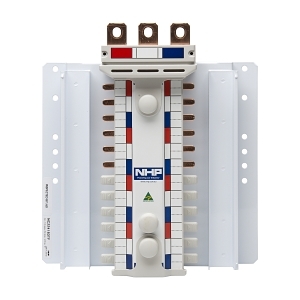

NHP POWERMAX MOD6 Busbar Chassis 250A 72 Way 3Pole Top Feed


$1,226.90 List price: $1,629.10
+

Weight: 10.000 kg

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 72 Way 3Pole Top Feed

Brand: NHP

SKU: M6NC272183TF

Alternatively Known As: Busbar Chassis, Power Distribution Busbar, MOD6 Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 72
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 25 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 674mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current with 72 poles for extensive power distribution.
  • 3-phase input for efficient energy management.
  • Encapsulated material housing for enhanced durability.
  • IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
  • Complies with AS/NZS 3000 for electrical installation safety.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX MOD6 Busbar Chassis 250A 72 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
