M6NC284183U

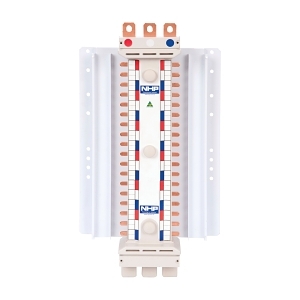

NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Universal


$1,586.60 List price: $2,106.90
+

Weight: 10.000 kg

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Universal

Brand: NHP

SKU: M6NC284183U

Alternatively Known As: Busbar Chassis, Power Distribution Busbar, MOD6 Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 84
  • Number of Phases Input: 3-phase
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (ICW) 0.1 sec: 25 kA
  • Short Time Withstand Current (ICW) 0.3 sec: 20 kA
  • Short Time Withstand Current (ICW) 1 sec: 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 782mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current for robust power handling.
  • 84 poles with 3-phase input for versatile applications.
  • Encapsulated material housing for enhanced durability.
  • IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
