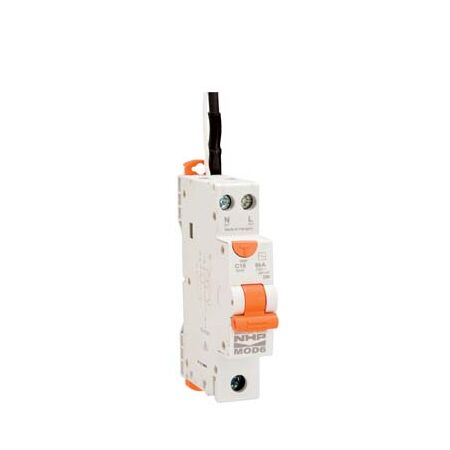

NHP RCBO MOD6 1P+N 6KA 10A C Curve 30MA Type AC Compact

NHP RCBO MOD6 1P+N 6KA 10A C Curve 30MA Type AC Compact:

RCBO 1P 6KA 30MA 10A MOD6-C Curve loadcenter/panelboard model with pigtail

Feature:

• Component Type MCBs RCDs RCBOs RCBO
• Busbar System, Bottom Fork
• Busbar System, Top Fork
• RCD Type (AS/NZS 61008/61009) AC
• IΔm, Rated Residual Making & Breaking Capacity 3000
• In, Rated Current 10
• IΔn, Rated Residual Operating Current 30
• Icn, Rated Short Circuit Capacity 6
• Depth, Unit 76
• Rated Frequency 50
• Height, Unit 86
• Relative Humidity (Max.) 95
• IP Rating, Inside IP40
• IP Rating, Outside IP20
• Mounting DIN Rail Mount
• Number of Poles 1
• Insulation Resistance 1000
• Electrical Service Life at Un, In 10000
• Mechanical Service Life 20000
• Standards Compliance AS/NZS 61009
• Calibration Temperature 30
• Operating Temperature (Max.) 55
• Operating Temperature (Min.) -5
• Storage Temperature (Max.) 70
• Storage Temperature (Min.) -25
• Tightening Torque, Bottom, Nominal 3
• Tightening Torque, Top, Nominal 3
• Trip Curve C
• Self Extinguish Degree (UL94) V-2
• Vibration Acceleration (Max.) 1.5
• Ui, Rated Insulation Voltage 500
• Un, Nominal Voltage, AC 240
• Ubmax, Service Voltage, AC, Max 255
• Ubmin, Service Voltage, AC, Min 85
• Weight, Unit 0.125
• Width, Unit 18
• Wire / Conductor Size, Bottom, Rigid Cable (Max) 25 mm²
• Wire / Conductor Size, Top, Rigid Cable (Max) 16 mm²
• Isolator Application, IEC 60947-2 Yes
