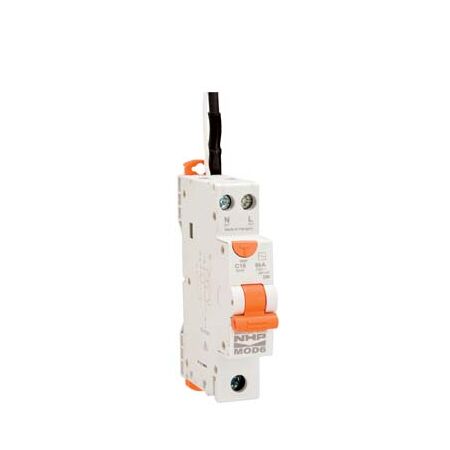

NHP RCBO MOD6 1P+N 6KA 16A C Curve 30MA Type AC Compact:
RCBO 1P 6KA 30MA 16A MOD6-C Curve loadcenter/panelboard model with pigtail
Feature:
- Component Type MCBs RCDs RCBOs RCBO
- Busbar System, Bottom Fork
- Busbar System, Top Fork
- RCD Type (AS/NZS 61008/61009) AC
- IΔm, Rated Residual Making & Breaking Capacity 3000
- In, Rated Current 16
- IΔn, Rated Residual Operating Current 30
- Icn, Rated Short Circuit Capacity 6
- Depth, Unit 76
- Rated Frequency 50
- Height, Unit 86
- Relative Humidity (Max.) 95
- IP Rating, Inside IP40
- IP Rating, Outside IP20
- Mounting DIN Rail Mount
- Number of Poles 1
- Insulation Resistance 1000
- Electrical Service Life at Un, In 10000
- Mechanical Service Life 20000
- Standards Compliance AS/NZS 61009
- Calibration Temperature 30
- Operating Temperature (Max.) 55
- Operating Temperature (Min.) -5
- Storage Temperature (Max.) 70
- Storage Temperature (Min.) -25
- Tightening Torque, Bottom, Nominal 3
- Tightening Torque, Top, Nominal 3
- Trip Curve C
- Self Extinguish Degree (UL94) V-2
- Vibration Acceleration (Max.) 1.5
- Ui, Rated Insulation Voltage 500
- Un, Nominal Voltage, AC 240
- Ubmax, Service Voltage, AC, Max 255
- Ubmin, Service Voltage, AC, Min 85
- Weight, Unit 0.125
- Width, Unit 18
- Wire / Conductor Size, Bottom, Rigid Cable (Max) 25 mm²
- Wire / Conductor Size, Top, Rigid Cable (Max) 16 mm²
- Isolator Application, IEC 60947-2 Yes
