MAS0504026R5

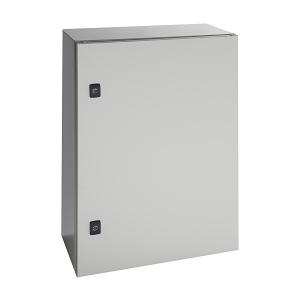

nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 H500 x W400 x D260mm Single Door


$389.20 List price: $516.80
+

Weight: 12.250 kg

Product Name/Title: nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 H500 x W400 x D260mm Single Door

Brand: NHP

SKU: MAS0504026R5

Alternatively Known As: Wall Mount Enclosure, Mild Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Mild steel
  • Surface finishing: Powder coating
  • Enclosure load capacity: 163 kg
  • Door load capacity: 28.5 kg
  • Material thickness: 1.4 mm
  • Degree of protection: IP66
  • Impact strength: IK10
  • Type of lock: DIN 1/4 turn
  • Number of doors: 1
  • Number of locks: 1
  • Dimensions (H x L x W): 500mm x 260mm x 400mm
  • Weight: 12.25 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Constructed from mild steel with a durable powder coating finish.
  • Includes adjustable mounting plate and gland plates.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for housing electrical and electronic equipment.
  • Commercial: Ideal for outdoor installations requiring protection from environmental factors.
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust protection.
