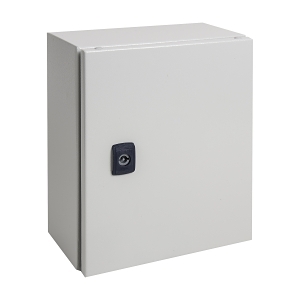

Product Name/Title: nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 H500 x W400 x D300mm Single Door
Brand: NHP
SKU: MAS0504030R5
Alternatively Known As: Wall Mount Enclosure, Mild Steel Enclosure, IP66 Enclosure
Technical Specifications
- Material: Mild steel
- Surface finishing: Powder coating
- Enclosure load capacity: 163 kg
- Material thickness: 1.5 mm
- Degree of protection: IP66
- Impact strength: IK10
- Type of lock: DIN 1/4 turn
- Gland plates included: Yes
- With mounting plate: Yes
- Mounting plate depth adjustable: Yes
- Dimensions (H x L x W): 500mm x 300mm x 400mm
- Weight: 12.9 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Constructed from durable mild steel with powder coating for enhanced corrosion resistance.
- Single door design with a load capacity of 28.5 kg.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Suitable for housing electrical and electronic equipment in harsh environments.
- Commercial: Ideal for outdoor installations requiring protection from dust and water.
Standards & Compliance
- Complies with relevant Australian standards for electrical enclosures.
Environmental Benefits
- Designed for durability, reducing the need for frequent replacements.
Warranty Information
Standard warranty applies, please check with the manufacturer for specific terms.
Available Now
The nVent HOFFMAN MAS Enclosure Wall Mount Mild Steel IP66 is available now for immediate purchase. Ideal for industrial and commercial applications.
