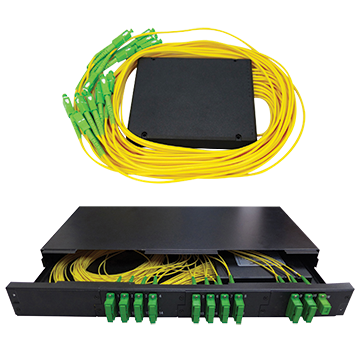

Product Name/Title: Optical Splitters
Brand: Matchmaster
SKU: 20MM-OSP4*4-19
Alternatively Known As: Fiber Optic Splitters, Optical Splitter Modules, Fiber Splitters
Technical Specifications
- Connector Type: SC/APC or LC/UPC
- Port Configuration: 1x2, 1x4, 1x8 options available
- Insertion Loss: < 1.5 dB
- Operating Wavelength: 1260nm - 1650nm
- Return Loss: > 55 dB
- Operating Temperature: -40°C to +85°C
- Fiber Type: Single mode or multi mode
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- High-performance optical signal division
- Low insertion loss for maximum signal quality
- Compact and robust design
Professional Installation Requirements
- Installation by a qualified technician is recommended for optimal performance.
Applications
- Telecommunications: Fiber optic networks
- Data Centers: Managing signal distribution
- Broadcasting: Signal splitting for broadcast applications
Standards & Compliance
- Complies with AS/NZS 3260 for fiber optic communication.
Environmental Benefits
- Supports the transition to high-speed fiber optic communication, reducing the need for copper cabling that can have environmental impacts.
Warranty Information
1 year warranty against defects in materials and workmanship.
Available Now
Optical Splitters are available now for immediate purchase. Ideal for telecommunications and data management applications.
