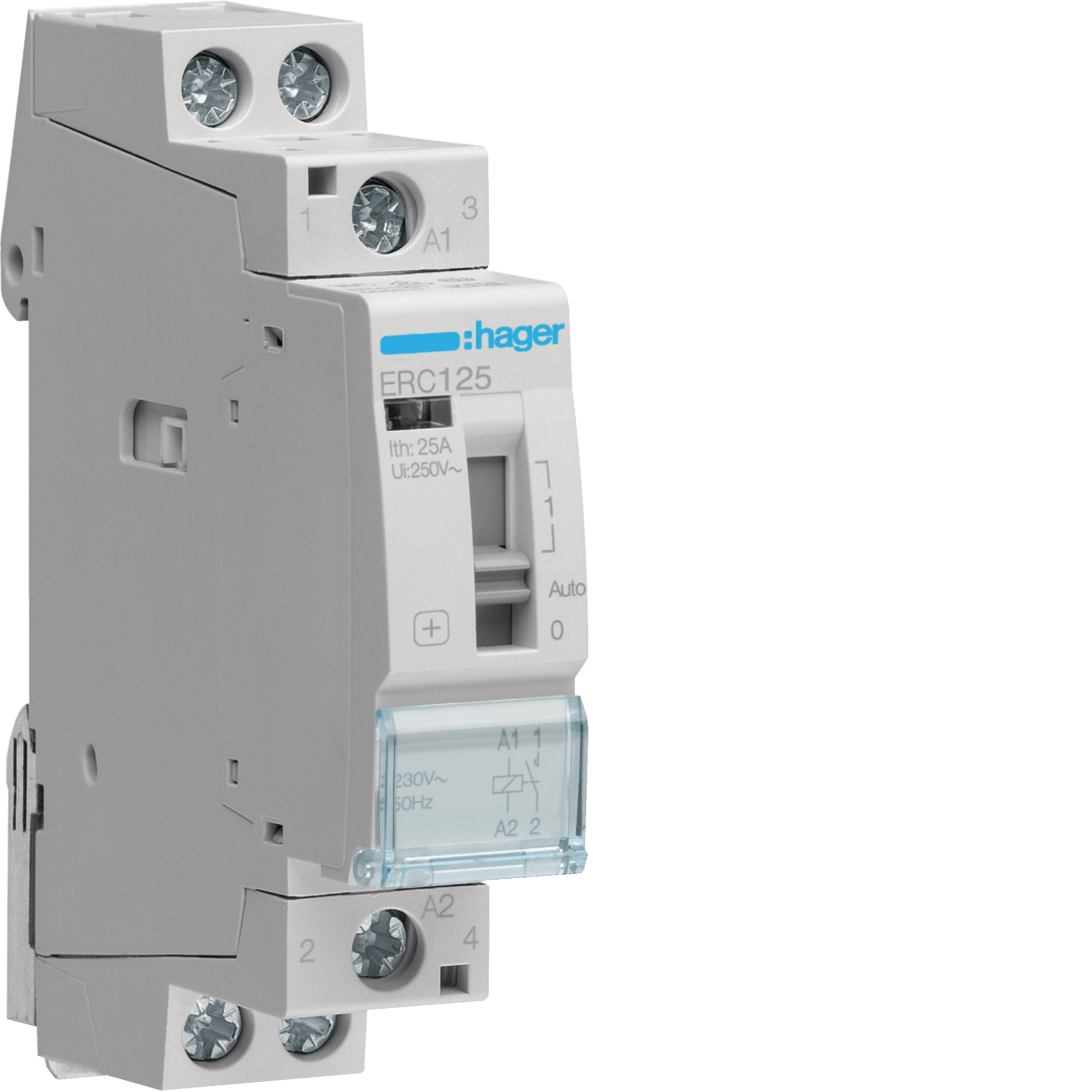

Product Name/Title: Override Contactor 25A, 1NO, 230V~50Hz
Brand: Hager
SKU: ERC125
Alternatively Known As: Contactor Switch 25A
Technical Specifications
- Connection Type: 1NO
- Number of Contacts: 1
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 1
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 250 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 2.50 W
- Inrush power absorbed: 10.70 VA
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 17.85mm
- Weight: 0.25 kg
Key Features
- Rated current of 25 A
- 230 V AC command voltage
- High mechanical endurance of 100,000 operations
- Compact width of 1 module
Professional Installation Requirements
- Professional installation by a certified electrician is necessary to ensure proper function and safety.
Applications
- Residential: Automatic control circuits in homes
- Commercial: Office lighting control systems
- Industrial: Equipment control and automation
Standards & Compliance
- Conforms to relevant Australian electrical safety standards.
Environmental Benefits
- Energy-efficient design minimizes power loss.
Warranty Information
1-year manufacturer's warranty against defects.
Available Now
The Override Contactor 25A from Hager is available for immediate purchase, ideal for efficiently managing various control applications.
