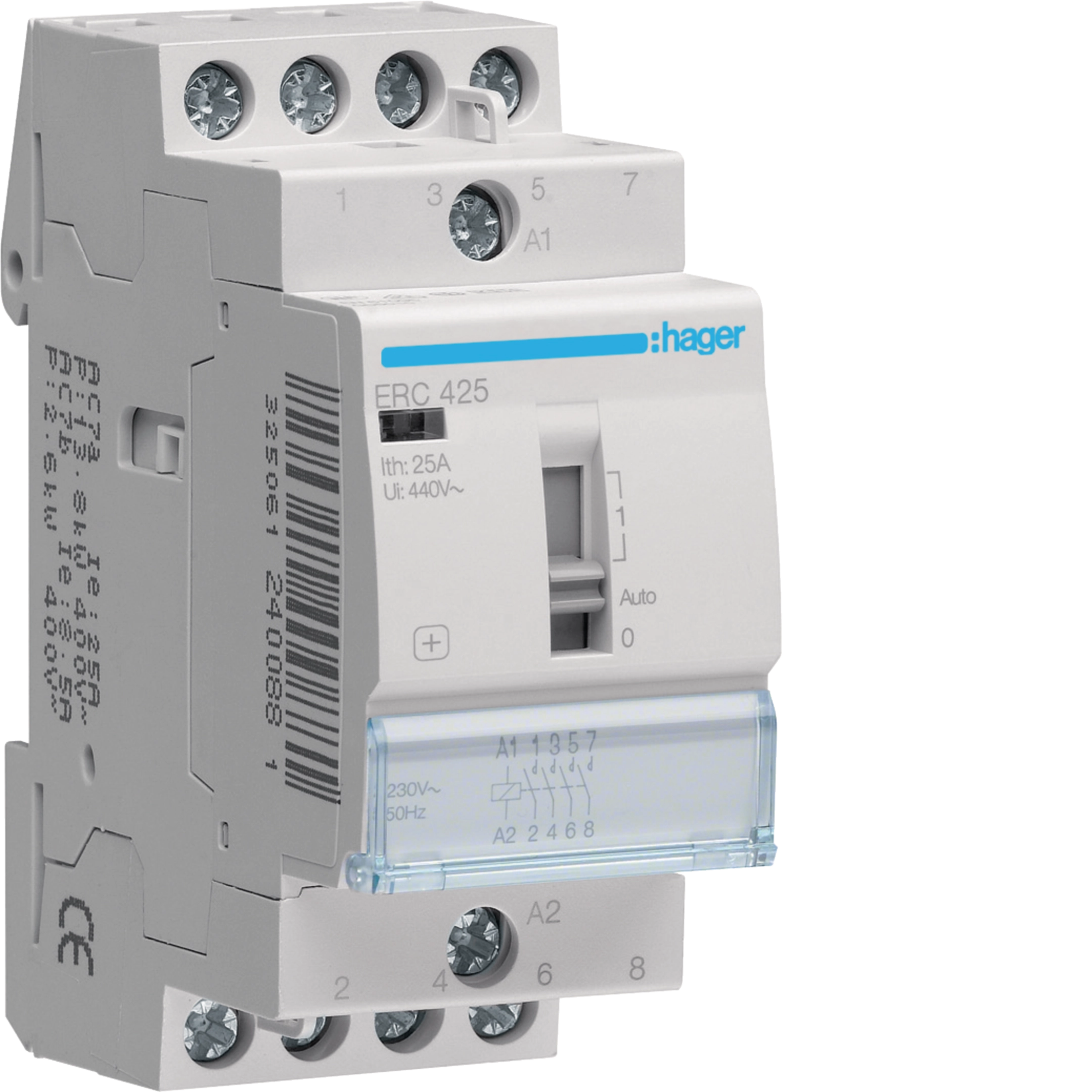

Product Name/Title: Override Contactor 25A, 4NO, 230V~50Hz
Brand: Hager
SKU: ERC425
Alternatively Known As: Override Contactor
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7.50 W
- Inrush power absorbed: 21 VA
- Nominal tightening torque: 1.20 Nm
- Number of modules: 2
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.6 kg
Key Features
- 4 Normally Open (NO) contacts for versatile control
- Rated current of 25A, suitable for various applications
- High electric endurance with 30,000 cycles
- Manual switch available for easy control
Professional Installation Requirements
- Professional installation by a certified electrician is recommended to ensure optimal performance and safety.
Applications
- Commercial: Industrial settings, factories, and automation systems
- Residential: For electrical systems requiring contactor implementation
Standards & Compliance
- Complies with AS/NZS standards for safety and reliability.
Environmental Benefits
- Designed for high efficiency with minimal power loss.
Warranty Information
1 year warranty against defects.
Available Now
The Hager ERC425 Override Contactor is available for immediate purchase. Ideal for commercial and residential electrical control systems requiring reliable contactor solutions.
