A9MEM1541

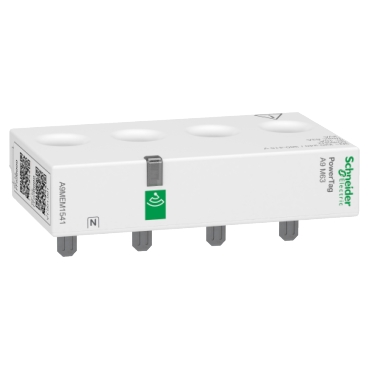

PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P+N top position


$292.80 List price: $439.20
+

Weight: 0.062 kg

Product Name/Title: PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P+N top position

Brand: Clipsal

SKU: A9MEM1541

Alternatively Known As: PowerTag Energy Sensor, Clipsal Energy Monitor

Technical Specifications
  • Rated operational voltage: 220...240 V AC, +/- 20 %
  • Max current: 63 A
  • IP Rating: IP20
  • Operating temperature: -25...60 °C
  • Transmission support medium: Radio frequency 2.4-2.4835 GHz
  • Power consumption: 2 VA
  • Accuracy class: Class 1 current, Class 0.5 voltage
  • Dimensions (H x L x W): 16.5mm x 43mm x 72mm
  • Weight: 0.062 kg
Key Features
  • Monoconnect design for easy installation on circuit breakers.
  • Compatible with Acti 9 and Multi9 ranges.
  • Supports voltage and current measurement for energy management.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended.
Applications
  • Buildings: Breaker voltage monitoring
  • Cost allocation
  • Overload alarm
  • Energy management
Standards & Compliance
  • Complies with IEC 61557-12 for energy monitoring.
Environmental Benefits
  • Green Premium product with reduced environmental impact.
Warranty Information

Standard warranty as per Clipsal's policy.

Available Now

The Clipsal PowerTag Monoconnect 63A Energy Sensor is available now for immediate purchase. Ideal for energy management in commercial and residential buildings.
