Trade Discount 33%
A9MEM1540

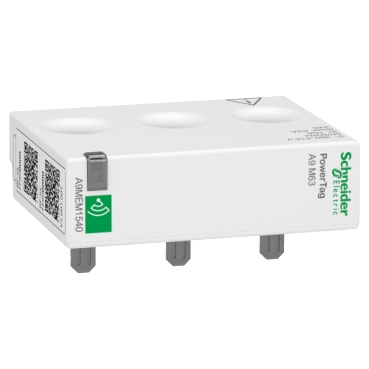

PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P top and bottom position


$292.80 List price: $439.20
+

Weight: 0.055 kg

Product Name/Title: PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P top and bottom position

Brand: Clipsal

SKU: A9MEM1540

Alternatively Known As: PowerTag Energy Monitor, Clipsal Energy Sensor, Circuit Monitoring Device

Technical Specifications
  • Rated operational voltage: 380...415 V AC
  • Max current: 63 A
  • Accuracy class: Class 1 current, Class 0.5 voltage
  • IP Rating: IP20
  • Operating temperature: -25...60 °C
  • Transmission support medium: Radio frequency 2.4-2.4835 GHz
  • Dimensions (H x L x W): 16.5mm x 43mm x 54mm
  • Weight: 0.055 kg
Key Features
  • Monoconnect design for top and bottom mounting.
  • Compatible with Acti 9 and Multi9 ranges.
  • Measures active power, current, voltage, and power factor.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Building energy management
  • Circuit monitoring
  • Cost allocation
  • Overload alarm
Standards & Compliance
  • Complies with IEC 61557-12 for energy monitoring.
Environmental Benefits
  • Green Premium product status.
  • Packaging made with recycled cardboard.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal PowerTag Energy Sensor 63A 3P is available now for immediate purchase. Ideal for energy management in commercial and residential buildings.
