Description

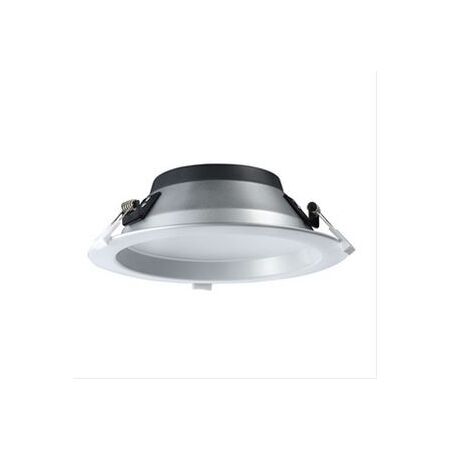

IP64 LED DOWNLIGHT
Includes
• S9071 LED donwlight
• S9071 Installation Instructions
• Premier Series Warranty Card
• Trailing edge dimmable LED Driver
• 1.2 m Flex & Plug
Options
- 1-10V dimming
- Digital dimming (DSI, DALI)
Features
- Recessed downlight
- Premium grade aluminium body
- Anodized silver or powder coated finish (White)
- Opal acrylic diffuser
- High efficiency SMD LED chips
- Trailing edge dimmable LED driver included
- 1.2 m flex & plug fitted
- IP64 weatherproof
- Available fitting colours: White, Anodized Silver
- Available colour temperature: Warm White, Daylight
- IC rating: abutted & covered
Installation Type
- RECESSED
technical specification
Model No | Colour Temperature | Input Voltage | Power | Luminous Flux | Beam Angle | CRI(Ra) | Dimmable | Dimensions Ø x H | Cut Out Size Ø | Fitting Colour |
---|---|---|---|---|---|---|---|---|---|---|
S9071WP SL | 3000K | 240V~50Hz | 11W | 800lm | 90º | >80 | Yes | 110 x 57 mm | 92 mm | Anodized Silver |
S9071CP SL | 4000K | 240V~50Hz | 11W | 880lm | 90º | >80 | Yes | 110 x 57 mm | 92 mm | Anodized Silver |
S9071DP SL | 6000K | 240V~50Hz | 11W | 900lm | 90º | >80 | Yes | 110 x 57 mm | 92 mm | Anodized Silver |
