3PS63D3NE01P

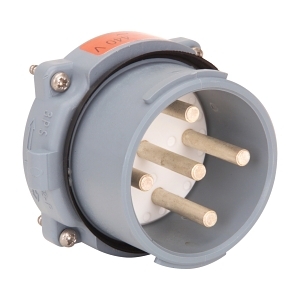

PROCONECT 3PS63 Socket Outlet, 3P+N+E+2p, 90A (AC23 63A) 440V AC


$1,089.40 List price: $1,446.60
+

Brand: NHP

Product Name/Title: PROCONECT 3PS63 Socket Outlet, 3P+N+E+2p, 90A (AC23 63A) 440V AC

Brand: NHP

SKU: 3PS63D3NE01P

Alternatively Known As: High Current Socket Outlet, 3 Phase Socket, Industrial Socket

Technical Specifications
  • Amperage: 90 A
  • Voltage: 380-440 V
  • Contact Configuration: 3P+N+E+2P
  • Construction Type: Outlet
  • Material Insulation Body: Polyamide (PA)
  • Contact Material: Other
  • Material Screw: Stainless steel
  • Degree of Protection: IP66
  • Nominal Tightening Torque: 4 Nm
  • Operating Temperature: -30-60 °C
  • Dimensions (H x L x W): 100mm x 114.5mm x 120mm
  • Weight: 0.64 kg
Key Features
  • High amperage rating of 90A for demanding applications.
  • IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Heavy machinery and equipment
  • Commercial: High power applications requiring robust connections
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
  • Durable design reduces the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The PROCONECT 3PS63 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power connections.
