SKU: ADD225B

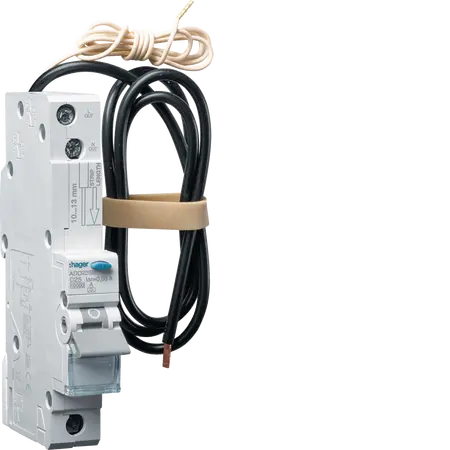

RCBO 1M 1P 10kA D-25A 30mA A

$196.00 List price: $250.60

+ −

30 Days Return Delivery Options

Weight: 0.500 kg

Description

Product Name/Title: RCBO 1M 1P 10kA D-25A 30mA A

Brand: Hager

SKU: ADD225B

Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device

Technical Specifications

Type of pole: 1P
Rated current: 25 A
Rated residual operating current: 30 mA
Rated short-circuit breaking capacity: 10 kA
Rated insulation voltage: 250 V
Rated operational voltage: 230 - 240 V
Operating temperature: -5 to 40 °C
Ingress Protection class: IP20
Number of modules: 1
Dimensions (H x L x W): 115mm x 70mm x 18mm
Weight: 0.5 kg

Key Features

1 Pole with Curve D for better protection against overloads.
Rated current of 25 A and residual current of 30 mA.
High breaking capacity of 10 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Designed to improve energy efficiency and reduce carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCBO 1M 1P 10kA D-25A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
