Home/Electrical/Switchgear/MCB/RCD RCBO Combos/RCBO 1M 1P 6kA C-16A 30mA A Class

Trade Discount 22%

SKU: ADC216T

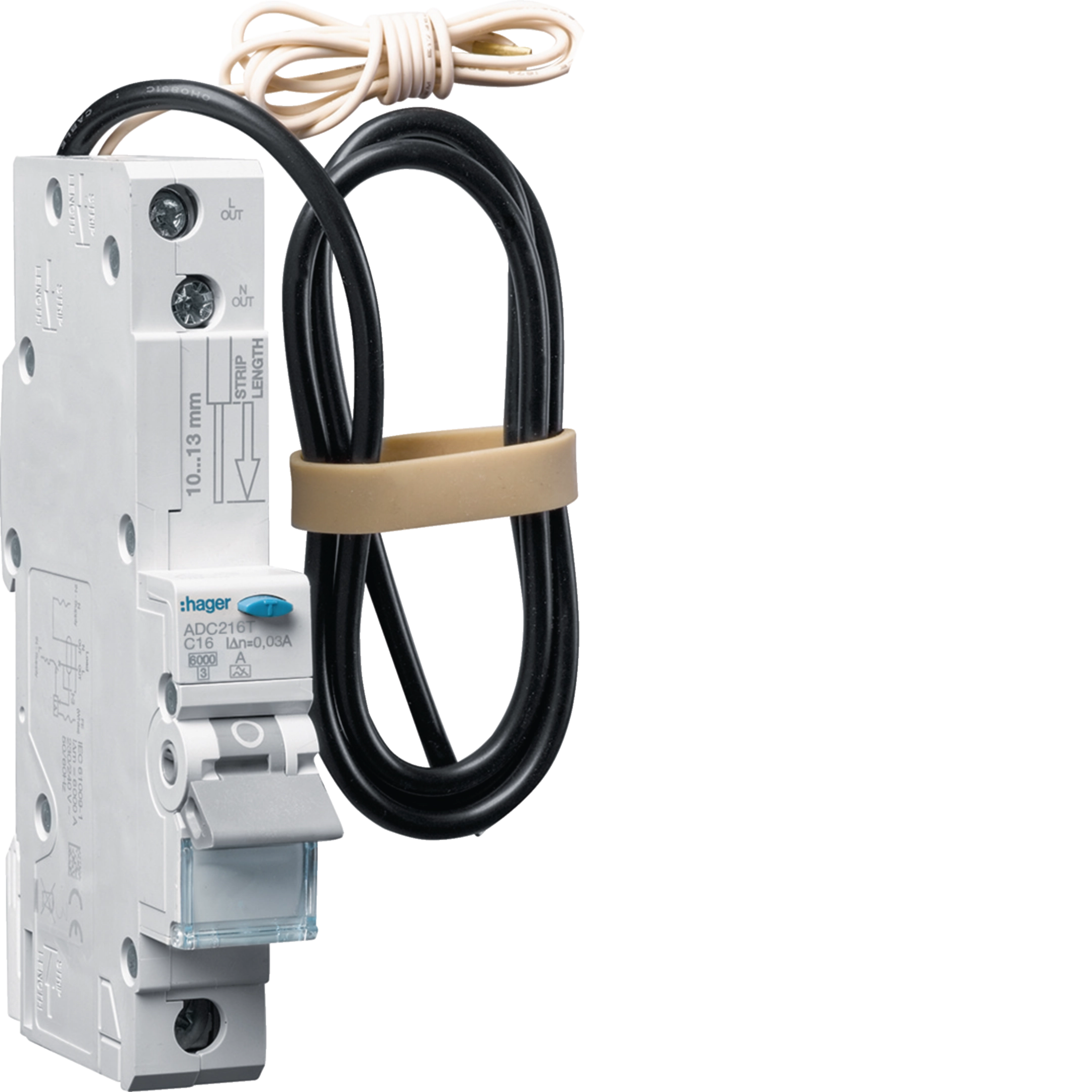

RCBO 1M 1P 6kA C-16A 30mA A Class

$107.60 List price: $137.60

+ −

30 Days Return Delivery Options

Weight: 0.500 kg

Description

Product Name/Title: RCBO 1M 1P 6kA C-16A 30mA A Class

Brand: Hager

SKU: ADC216T

Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device

Technical Specifications

Rated current: 16A
Rated residual operating current: 30mA
Rated short-circuit breaking capacity: 6kA
Ingress Protection class: IP20
Operating temperature: -5 to 40 °C
Storage temperature: -40 to 70 °C
Electric endurance: 2000 cycles
Mechanical operations: 10000 cycles
Suitable for DIN Rail installation
Dimensions (H x L x W): 115mm x 70mm x 18mm
Weight: 0.5 kg

Key Features

1 Pole with Curve C for standard applications.
Rated current of 16A and residual current of 30mA.
High breaking capacity of 6kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any electrical installation requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Commitment to improving environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCBO 1M 1P 6kA C-16A 30mA A Class is available now for immediate purchase. Ideal for residential and commercial electrical installations.
