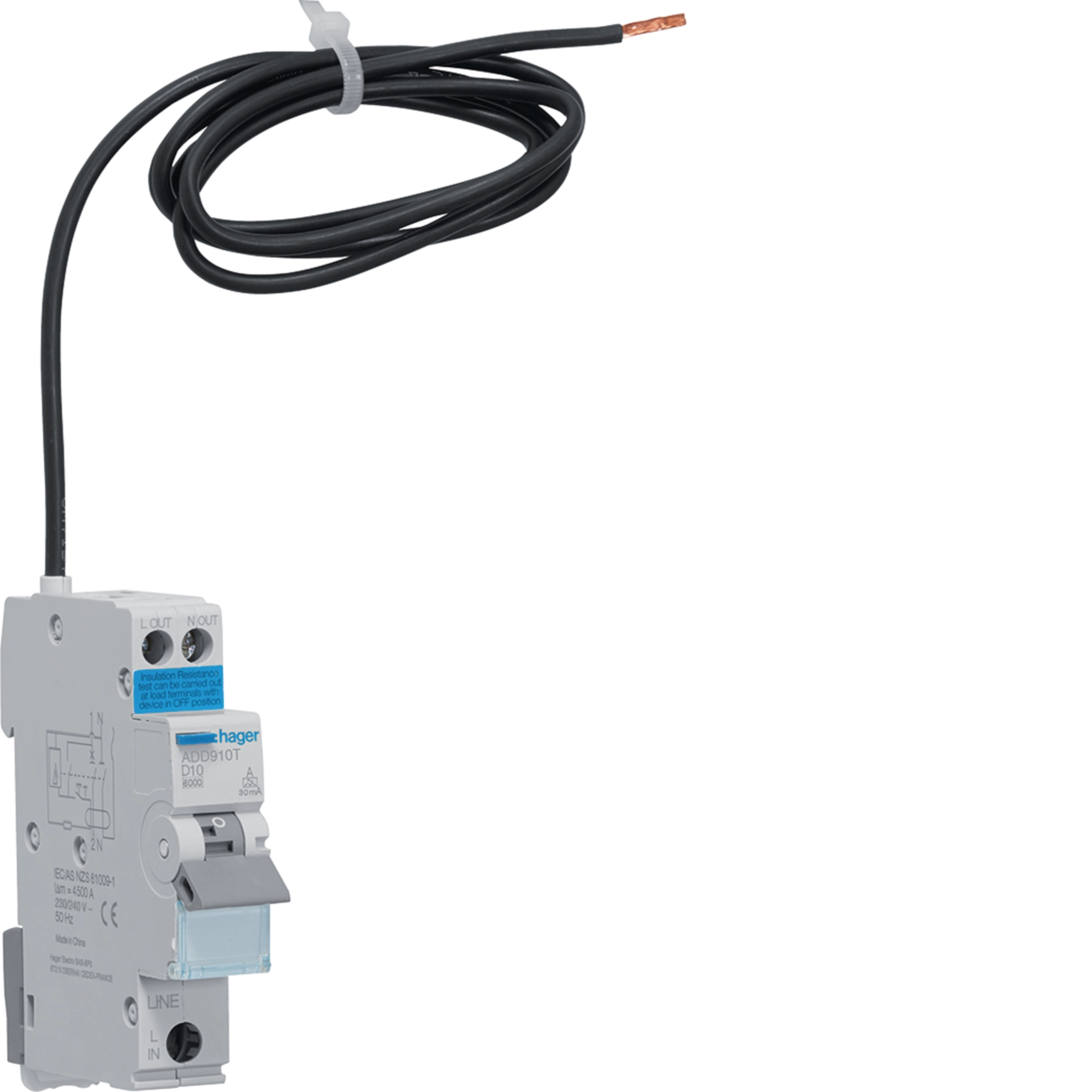

Product Name/Title: RCBO 1M 1P+N 6kA D-10A 30mA A
Brand: Hager
SKU: ADD910T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
- Rated current: 10 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection class: IP20
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 electric cycles, 20,000 mechanical operations
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
- 1P+N configuration for effective circuit protection.
- Rated current of 10 A with a residual current of 30 mA.
- High breaking capacity of 6 kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical safety in various installations
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
2 years warranty against manufacturing defects.
The Hager RCBO 1M 1P+N 6kA D-10A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
