CEA525T

RCCB 1P+N 25A 100mA A


$84.90 List price: $108.60
+

Weight: 0.500 kg

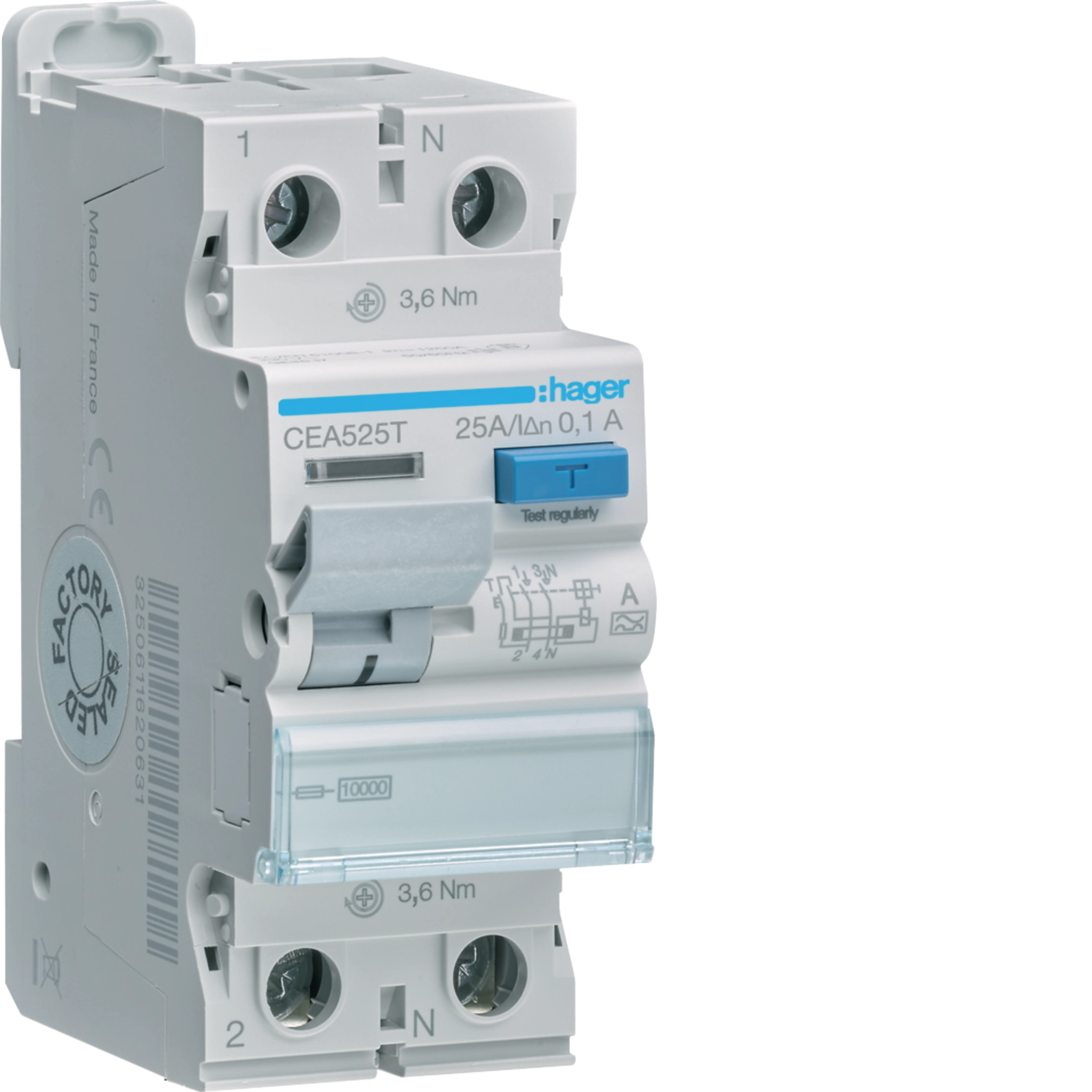

Product Name/Title: RCCB 1P+N 25A 100mA A

Brand: Hager

SKU: CEA525T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications
  • Rated operational voltage: 240V
  • Frequency: 50-60Hz
  • Dielectric strength: 2kV
  • Rated impulse withstand voltage: 4000V
  • Total power loss under IN: 1.77W
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000 cycles
  • Ingress Protection (IP) class: IP20
  • Dimensions (H x L x W): 85mm x 70mm x 36mm
  • Weight: 0.5 kg
Key Features
  • 1P+N configuration for single-phase applications.
  • Rated current of 25A and residual operating current of 100mA.
  • High breaking capacity of 1.25 kA.
  • Suitable for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • General: Any installation requiring residual current protection
Standards & Compliance
  • Complies with AS/NZS 61008 for residual current devices.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 25A 100mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
