CDB540T

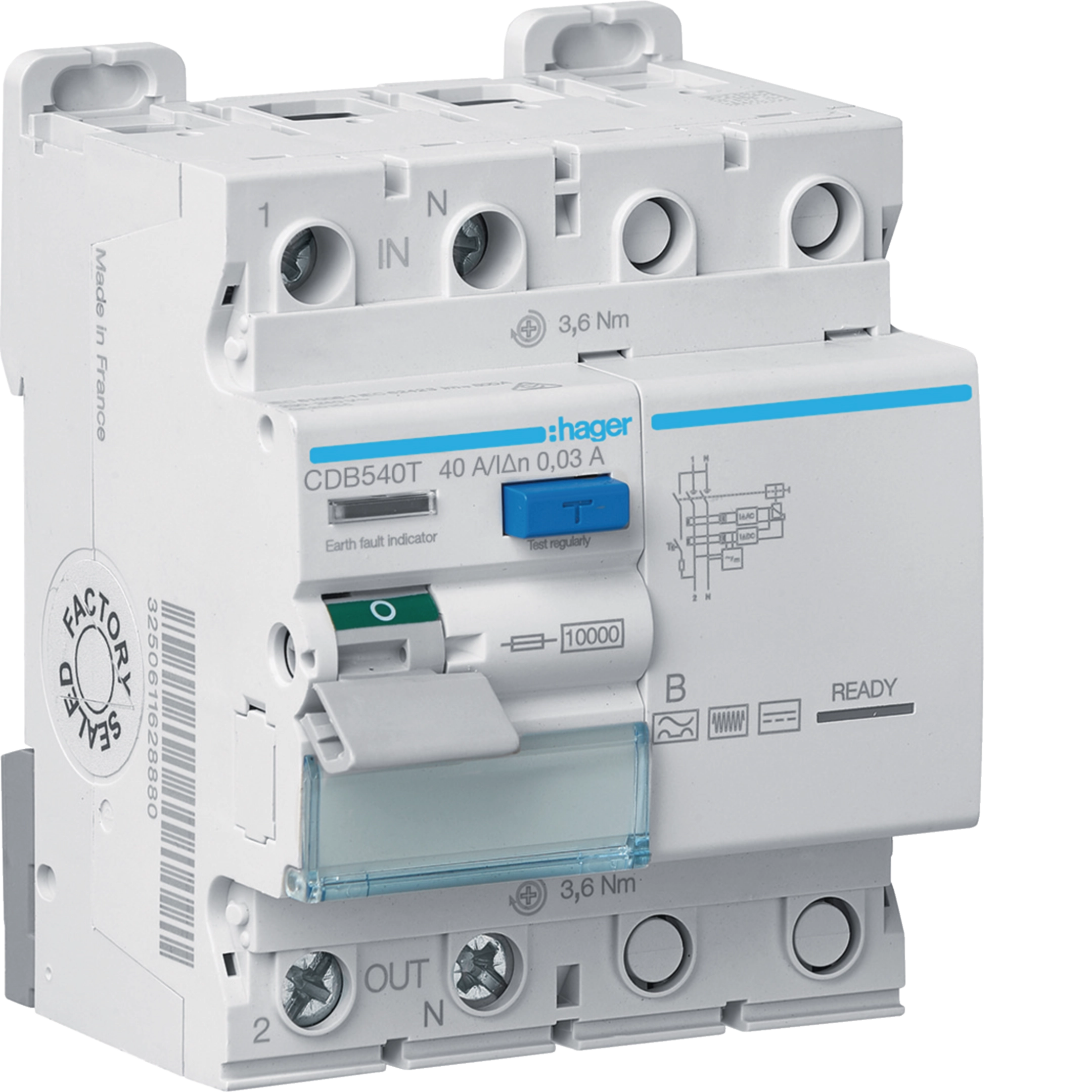

RCCB 1P+N 40A 30mA B


$521.60 List price: $667.00
+

Weight: 0.500 kg

Product Name/Title: RCCB 1P+N 40A 30mA B

Brand: Hager

SKU: CDB540T

Alternatively Known As: Residual Current Circuit Breaker, RCD, Safety Switch, RCCB

Technical Specifications
  • Rated operational voltage: 240V AC
  • Rated insulation voltage: 400V
  • Dielectric strength: 2 kV
  • Rated impulse withstand voltage: 4000V
  • Number of modules: 4
  • Ingress Protection (IP) class: IP20
  • Total power loss under IN: 3.31W
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000
  • Dimensions (H x L x W): 85mm x 70mm x 72mm
  • Weight: 0.5 kg
Key Features
  • 1P+N configuration for single-phase applications.
  • Rated current of 40A and residual operating current of 30mA.
  • High breaking capacity of 0.80 kA.
  • Suitable for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • General: Any installation requiring residual current protection
Standards & Compliance
  • Complies with AS/NZS 61008 for residual current devices.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 40A 30mA B is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
