Trade Discount 22%
CDF563T

RCCB 1P+N 63A 30mA F


$370.20 List price: $473.40
+

Weight: 0.500 kg

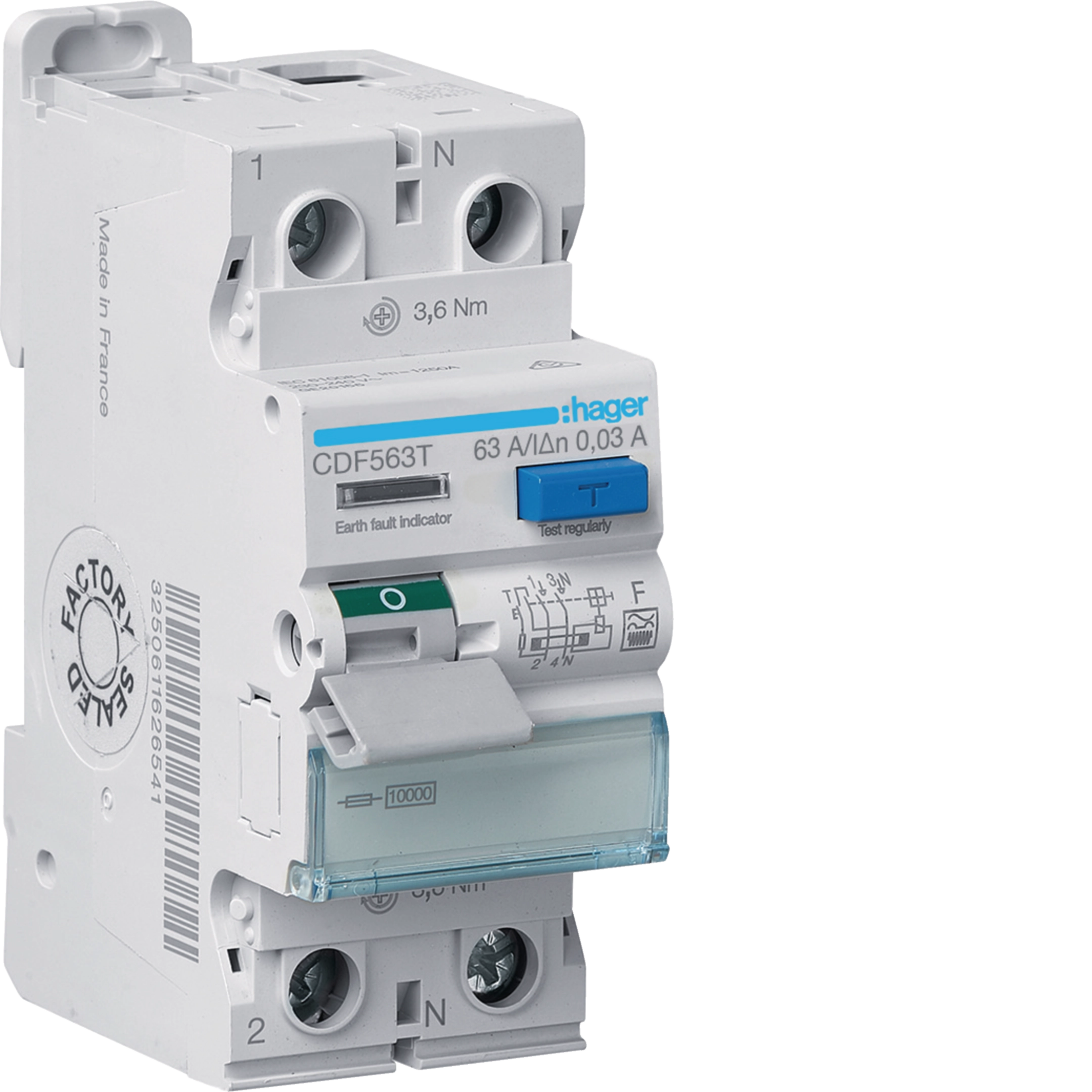

Product Name/Title: RCCB 1P+N 63A 30mA F

Brand: Hager

SKU: CDF563T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications
  • Type of pole: 1P+N
  • Rated current: 63 A
  • Rated residual operating current: 30 mA
  • Rated operational voltage: 240 V
  • Frequency: 50 Hz
  • Ingress Protection (IP) class: IP20
  • Total power loss under IN: 6.64 W
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000 cycles
  • Dimensions (H x L x W): 85mm x 70mm x 36mm
  • Weight: 0.5 kg
Key Features
  • 1P+N configuration for effective residual current protection.
  • Rated current of 63A and residual operating current of 30mA.
  • High breaking capacity of 1.25 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 63A 30mA F is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
