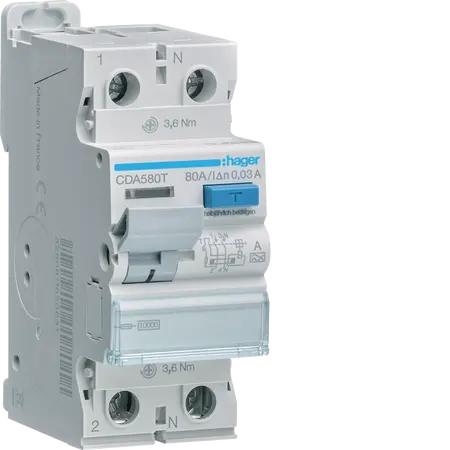

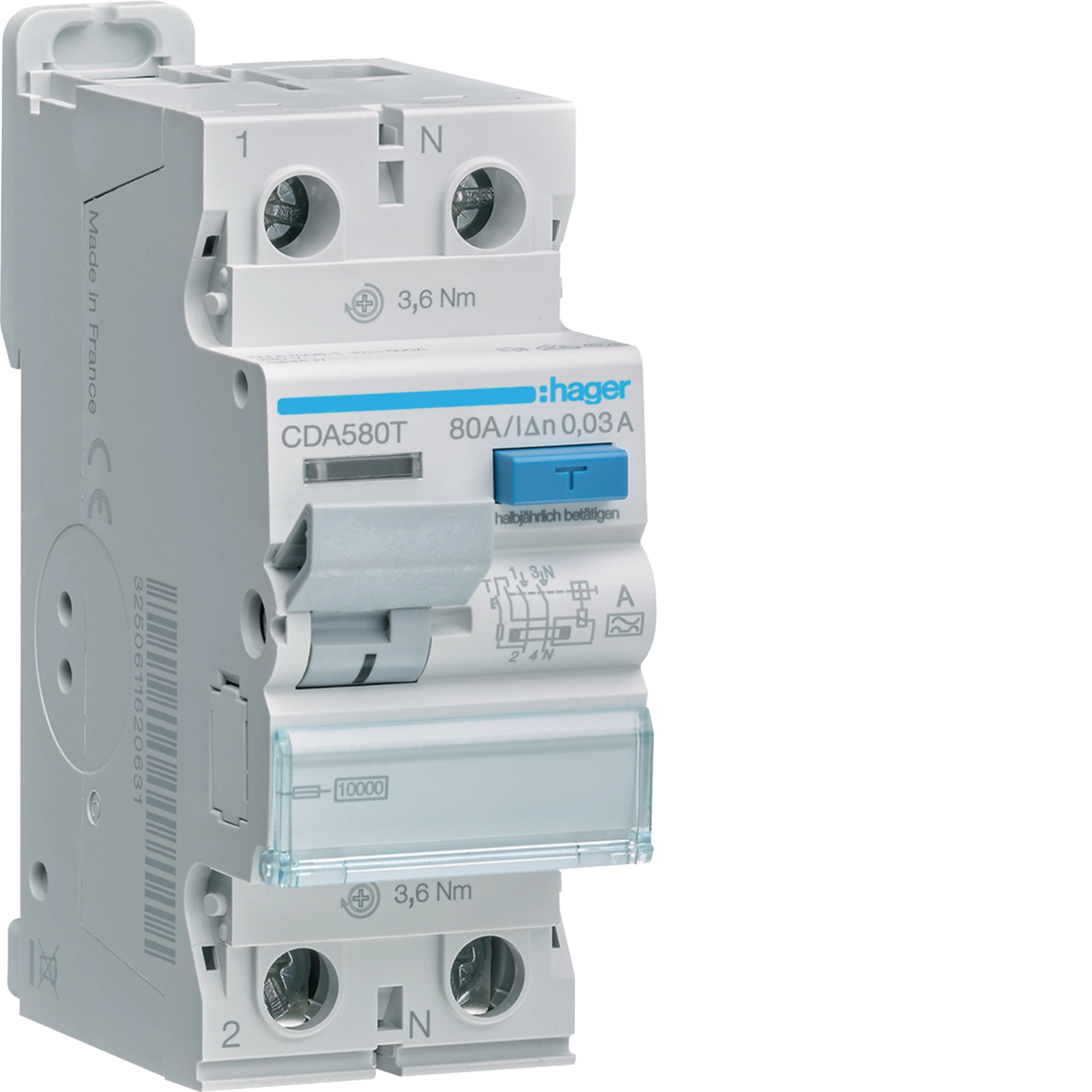

Product Name/Title: RCCB 1P+N 80A 30mA A
Brand: Hager
SKU: CDA580T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 1P+N
- Rated current: 80 A
- Rated residual operating current: 30 mA
- Breaking capacity: 1.25 kA
- Rated conditional short-circuit current: 10 kA
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Number of modules: 2
- Residual current type: A
- Total power loss under IN: 10.90 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.5 kg
Key Features
- Rated current of 80A and residual operating current of 30mA.
- Suitable for DIN Rail installation.
- IP20 ingress protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 1P+N 80A 30mA is available now for immediate purchase. Ideal for residential and commercial electrical installations.
