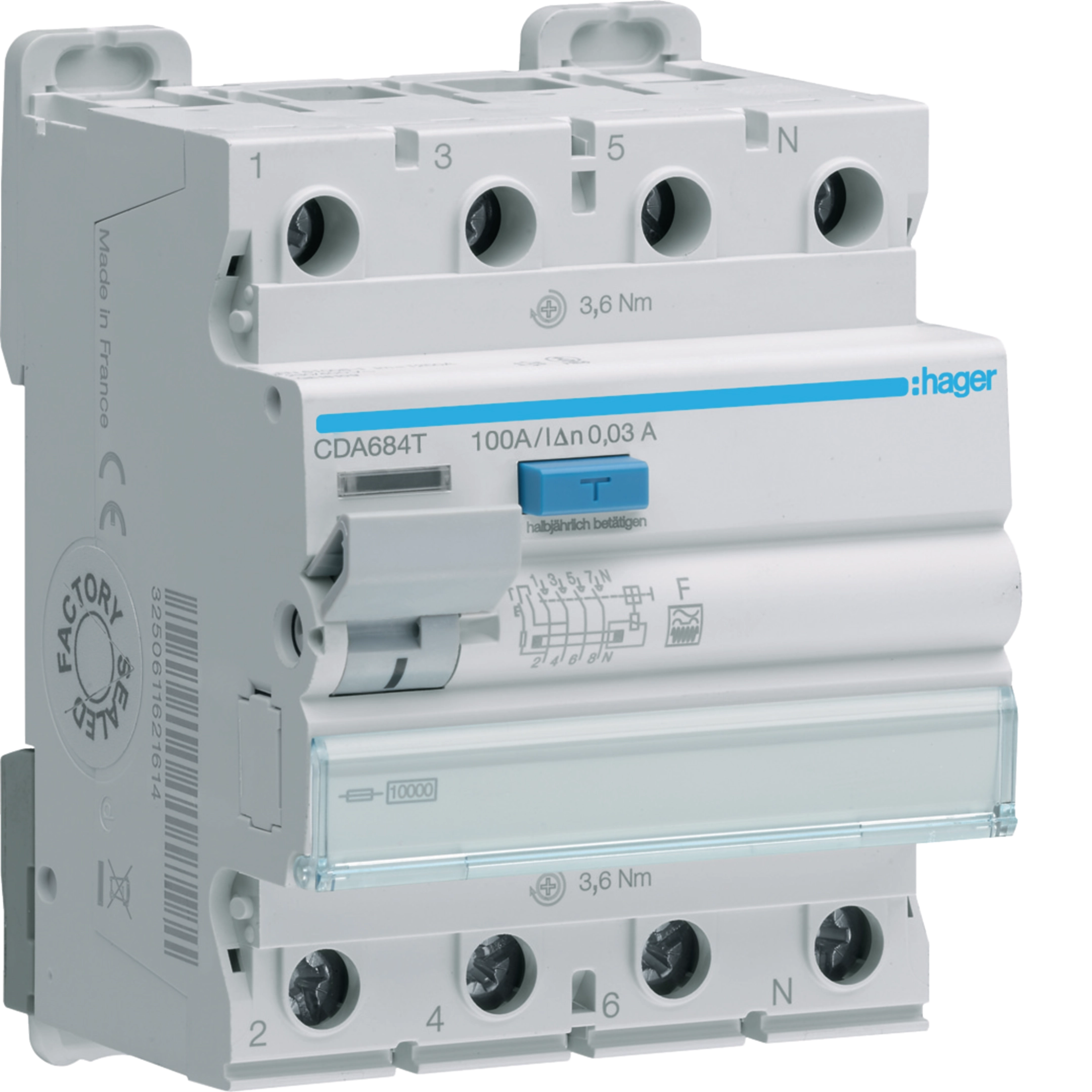

Product Name/Title: RCCB 3P+N 100A 30mA A
Brand: Hager
SKU: CDA684T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 Hz
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 21.48 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 1.5 kg
Key Features
- 3P+N configuration for enhanced safety and performance.
- Rated current of 100A and residual operating current of 30mA.
- High breaking capacity of 1.25 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 100A 30mA is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
