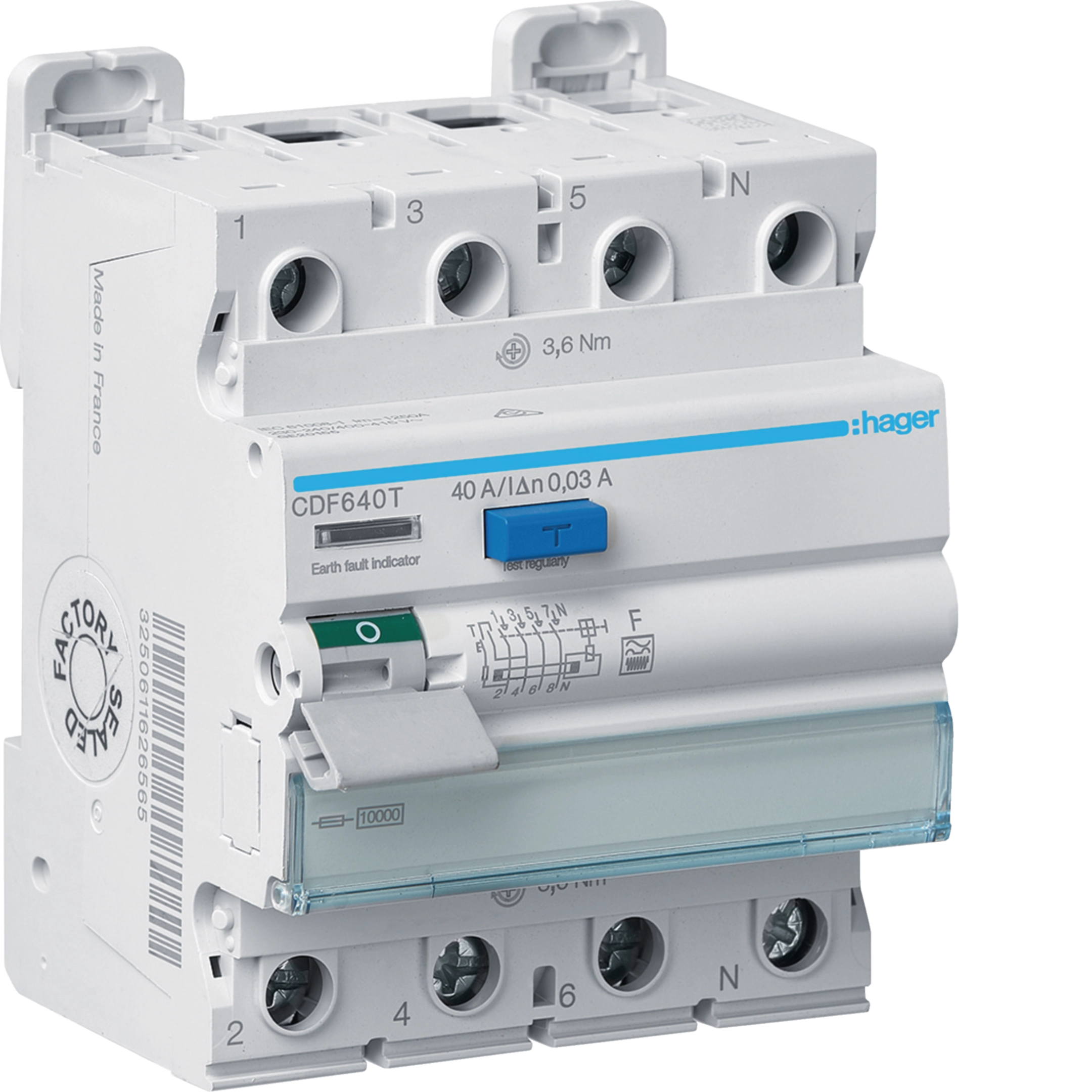

Product Name/Title: RCCB 3P+N 40A 30mA F
Brand: Hager
SKU: CDF640T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Total power loss under IN: 4.39 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000 cycles
- Nominal tightening torque: 3.60 Nm
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.5 kg
Key Features
- 3P+N configuration for enhanced safety
- Rated current of 40A and residual current of 30mA
- IP20 ingress protection rating
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 40A 30mA F is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
