HV9101-E5S

RGBCW LED Strip Touch Panel


$146.00 List price: $190.10
+

Weight: 0.300 kg

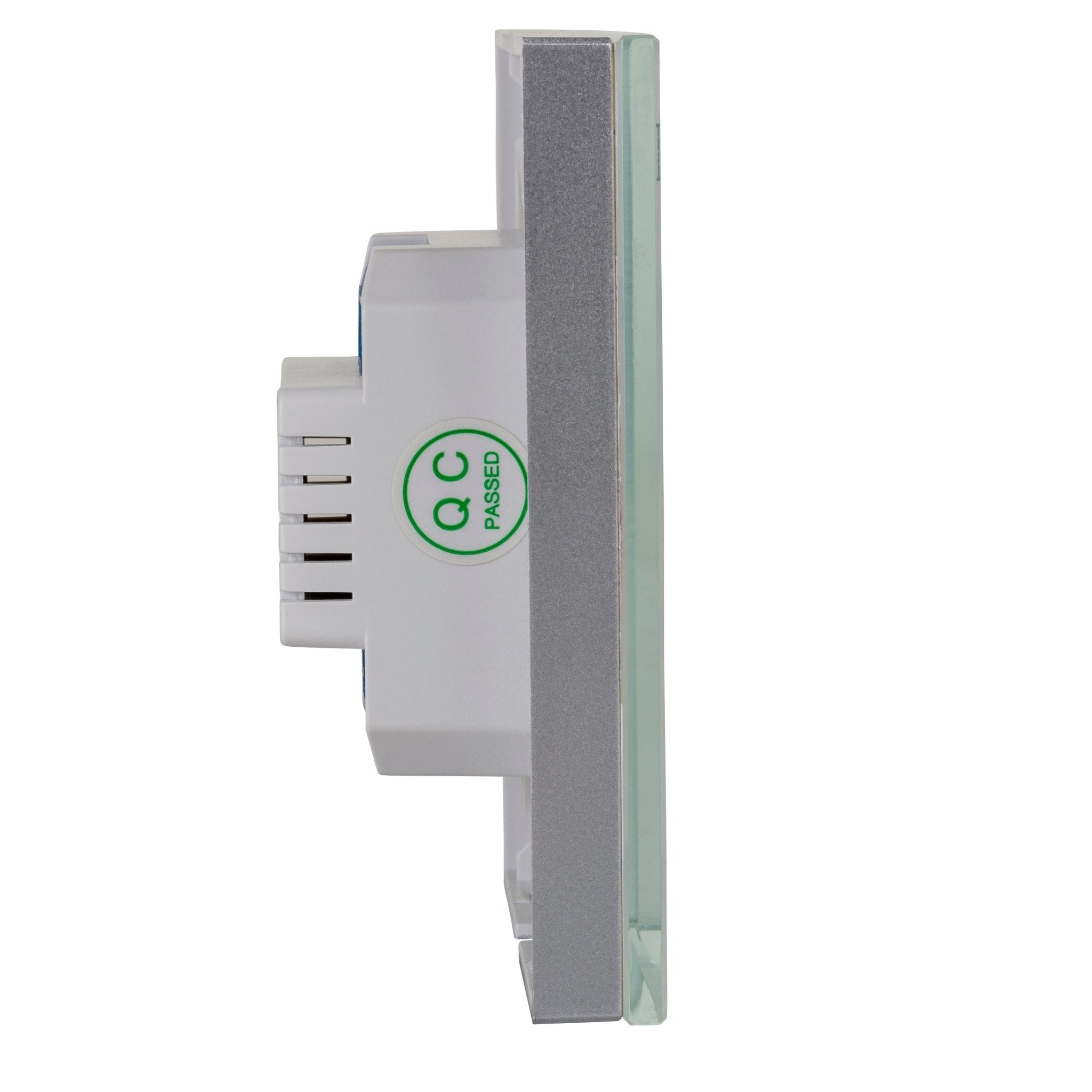

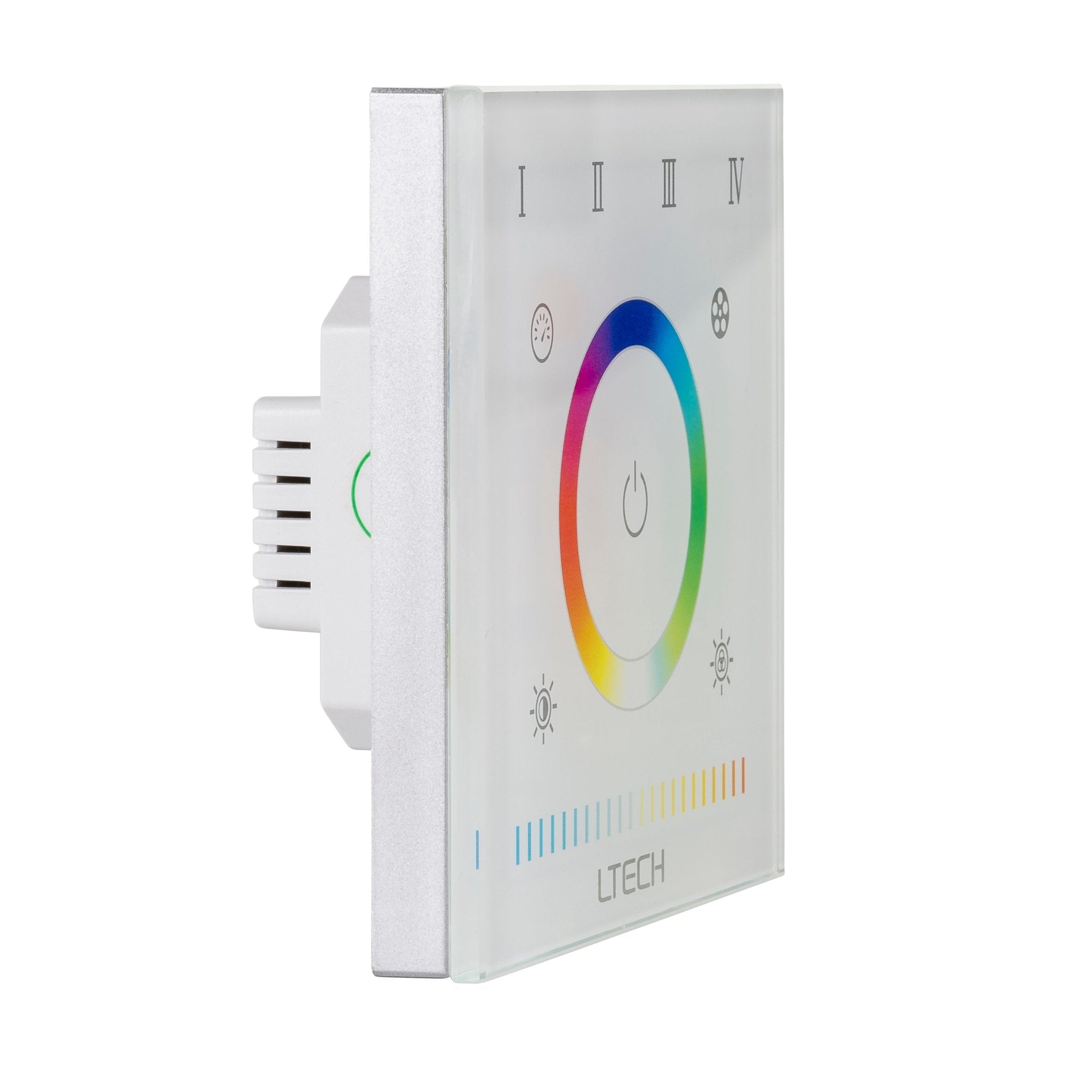

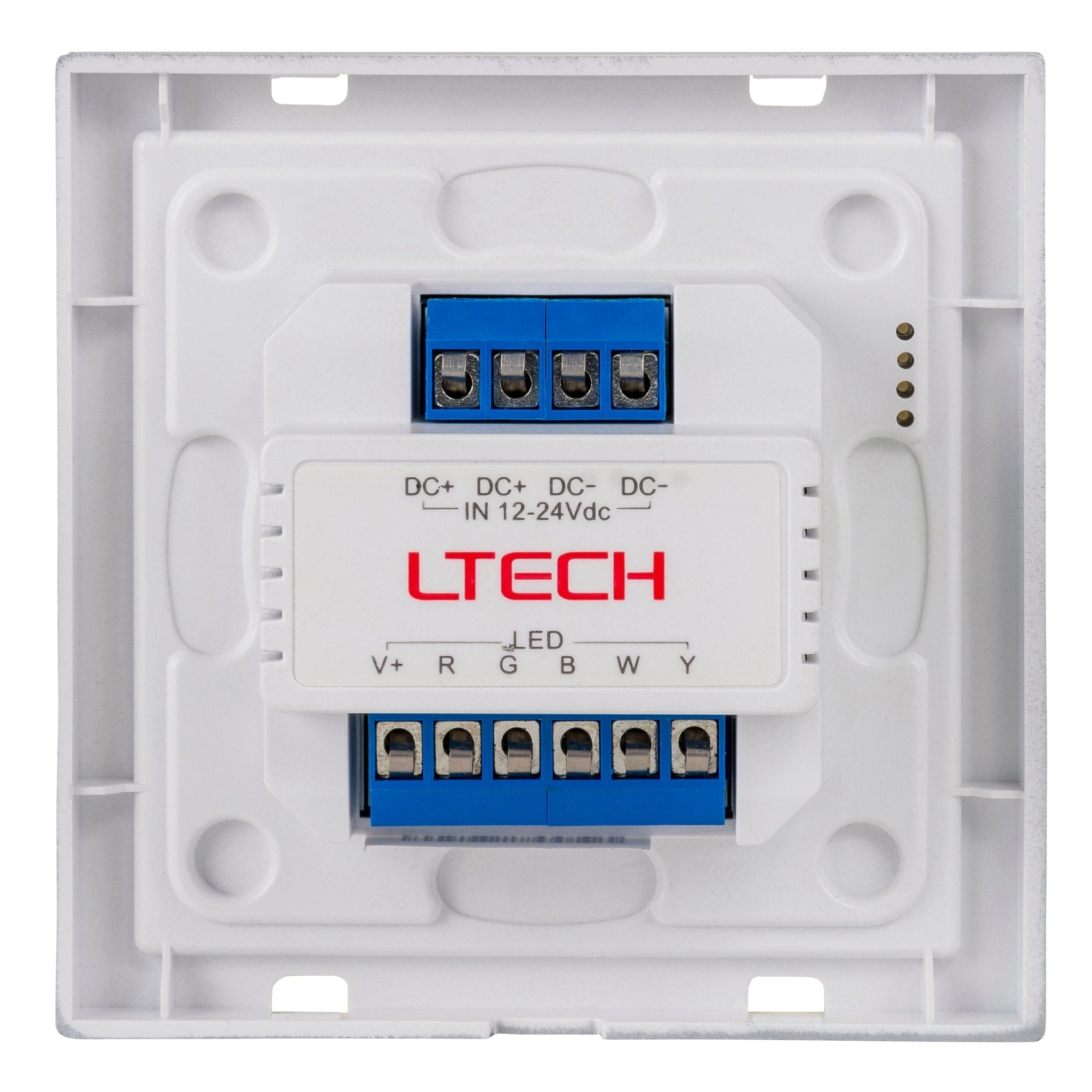

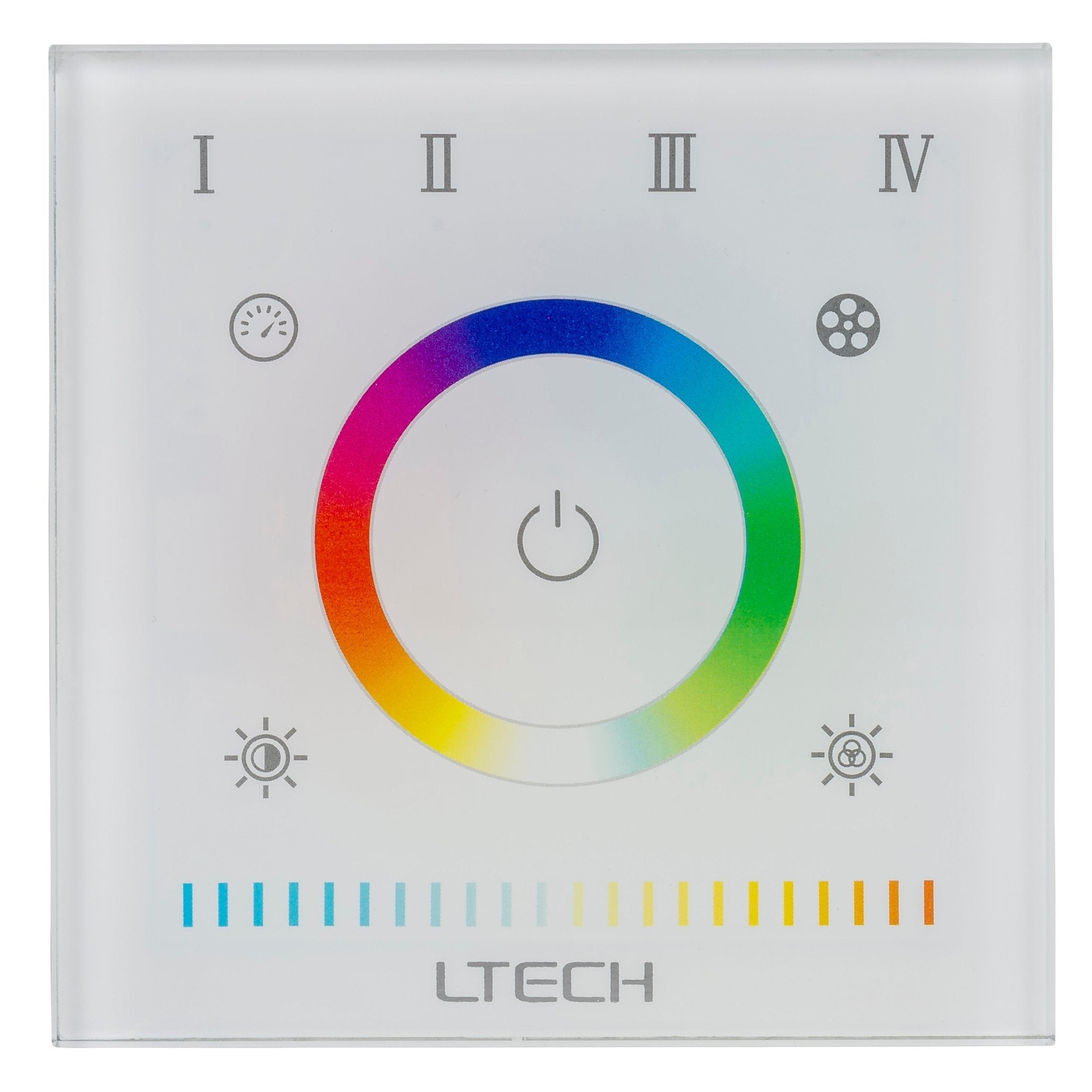

Product Name/Title: RGBCW LED Strip Touch Panel

Brand: Havit

SKU: HV9101-E5S

Alternatively Known As: LED Strip Controller, RGB LED Touch Panel, RGBW Controller

Technical Specifications
  • Input voltage: 12V DC or 24V DC
  • Output power: 12V DC: RGB = 108w | CT = 36w / 24V DC: RGB = 216w | CT 72w
  • IP Rating: IP20

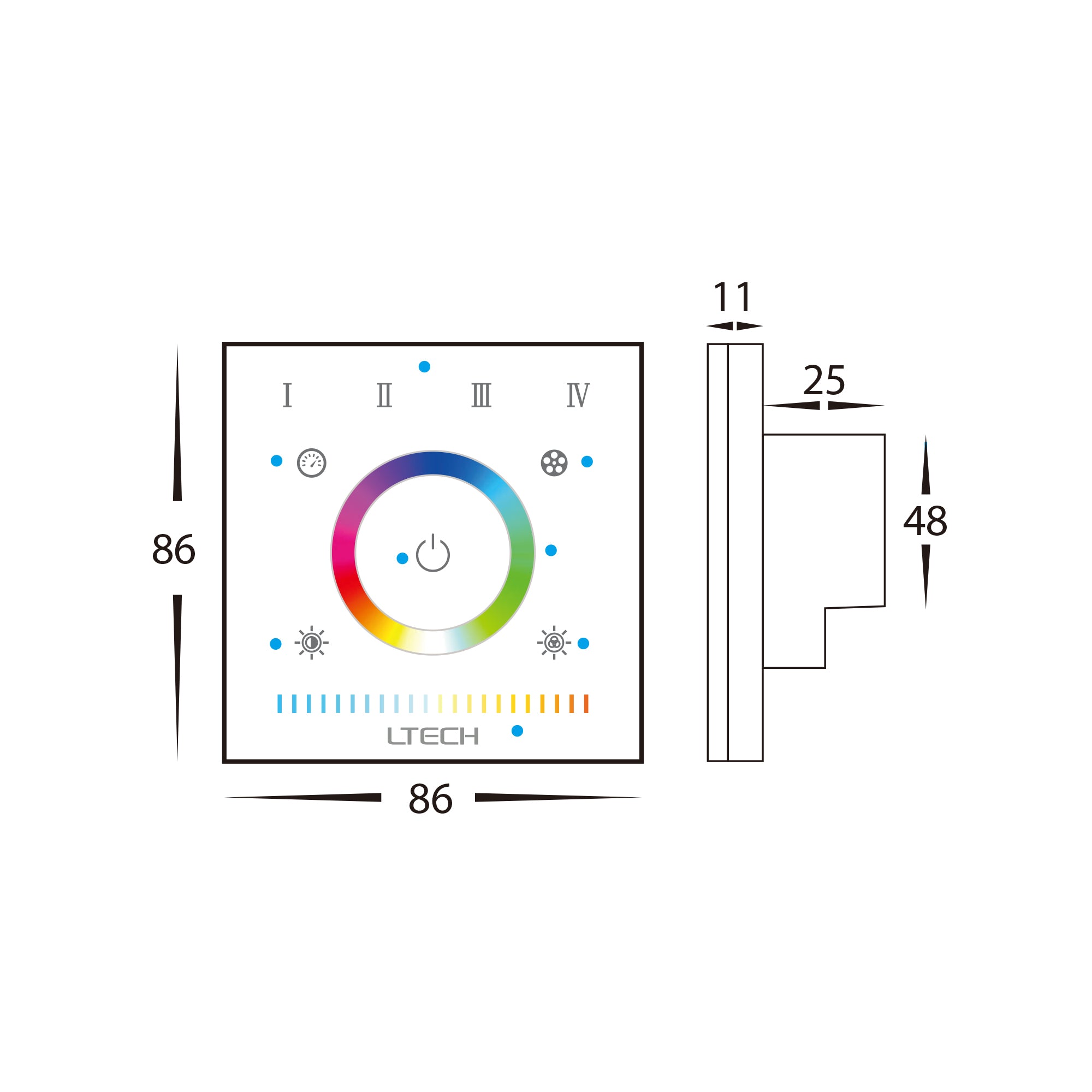

  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.3 kg
Key Features
  • 4 scene presets for customizable lighting
  • Compatible with both 12V DC and 24V DC input voltage
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring LED strip control
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Havit RGBCW LED Strip Touch Panel is available now for immediate purchase. Ideal for residential and commercial spaces, enhancing LED strip lighting control.

Download (HV9101-E5S_Data_Sheet_AUG23.pdf, 936 Kb) [Download]

Download (HV9101-E5S_Instructions.pdf, 2,008 Kb) [Download]
