HV3283T-GPH

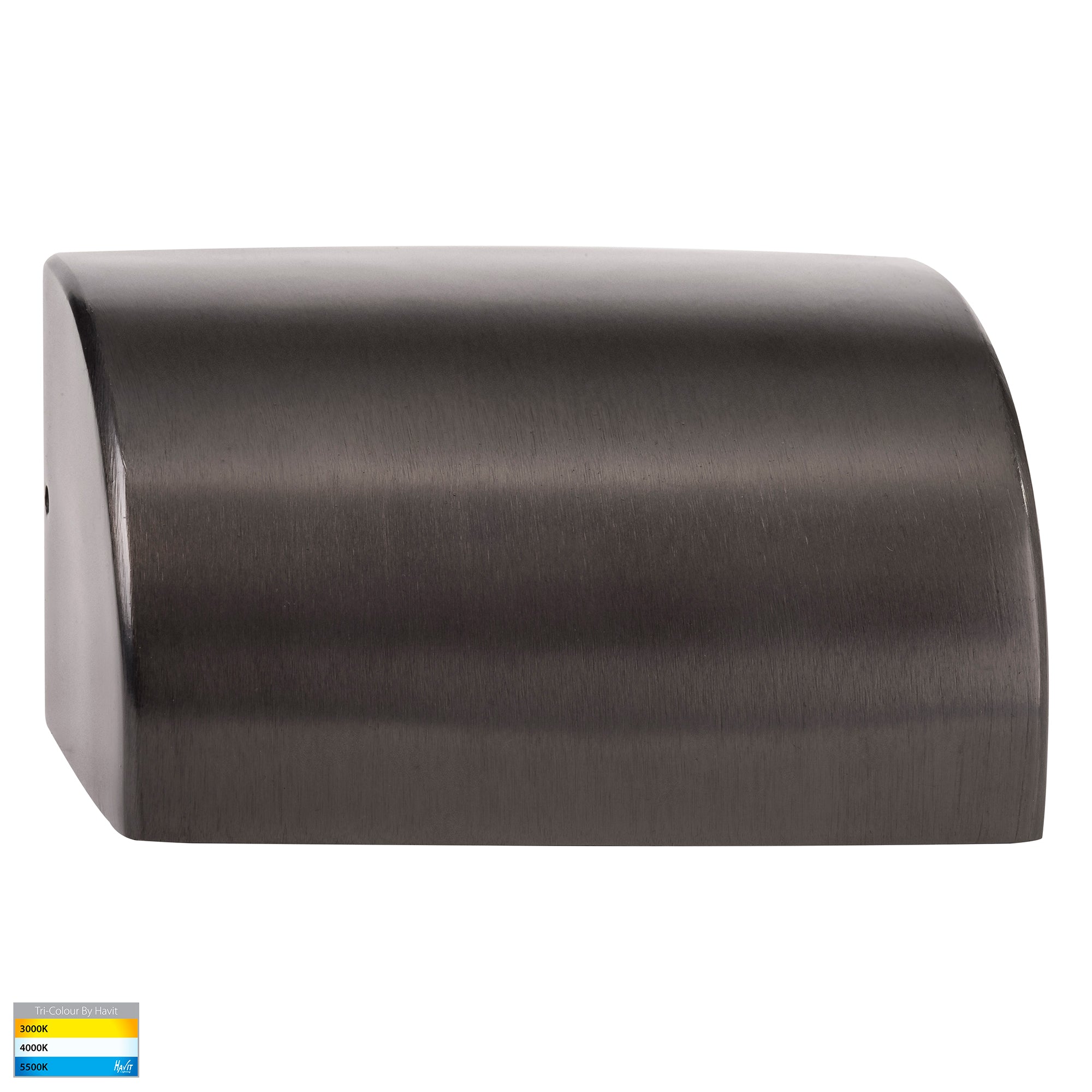

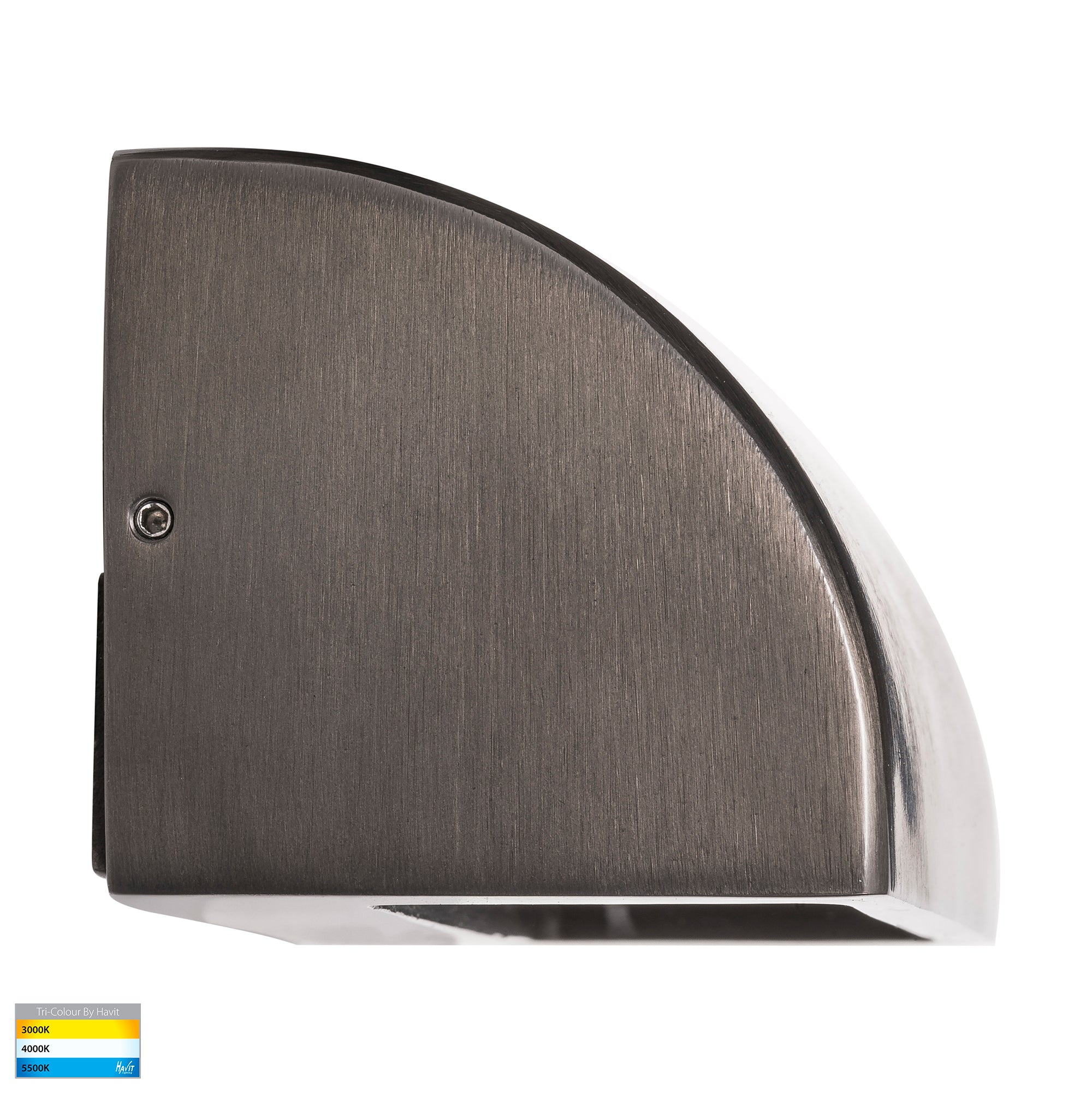

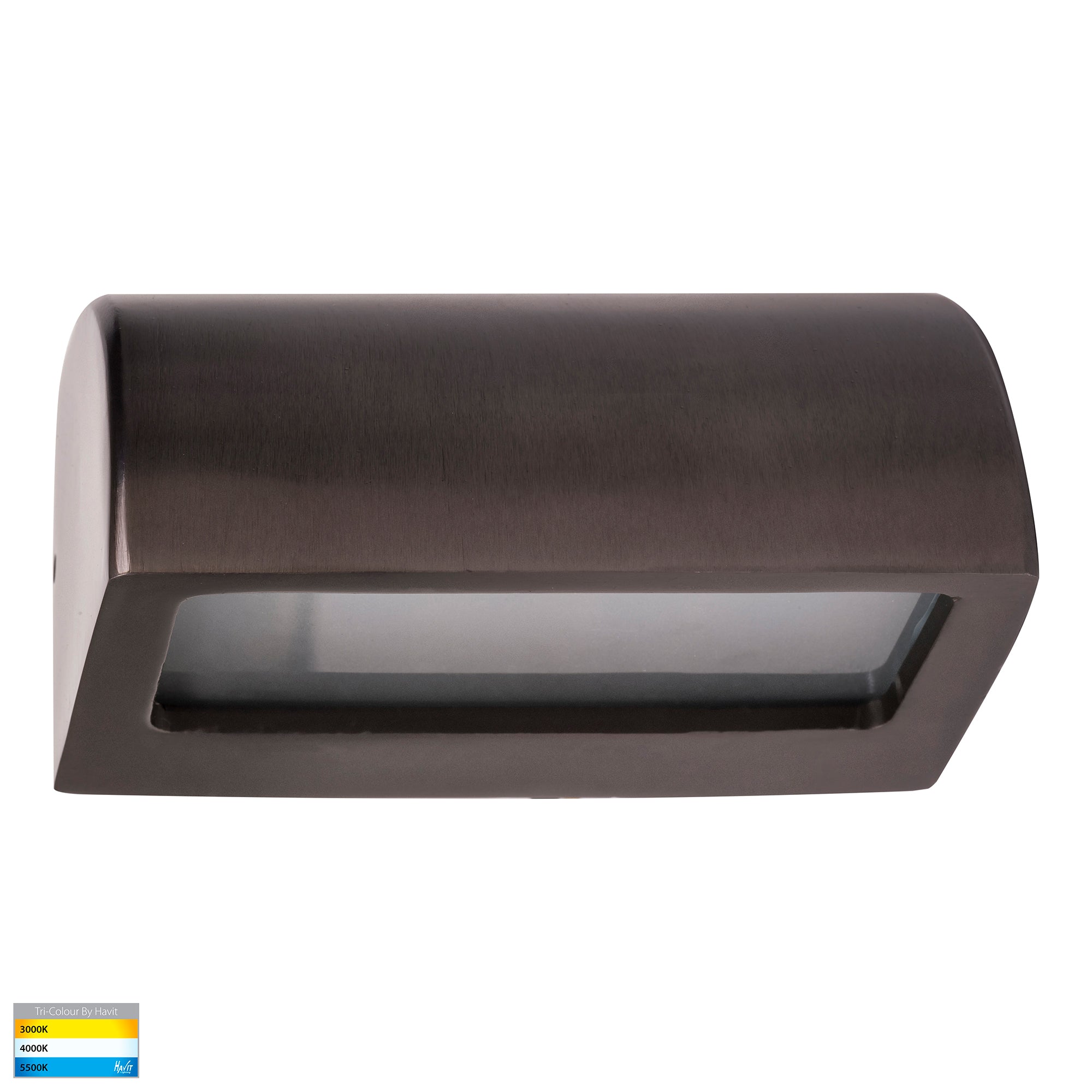

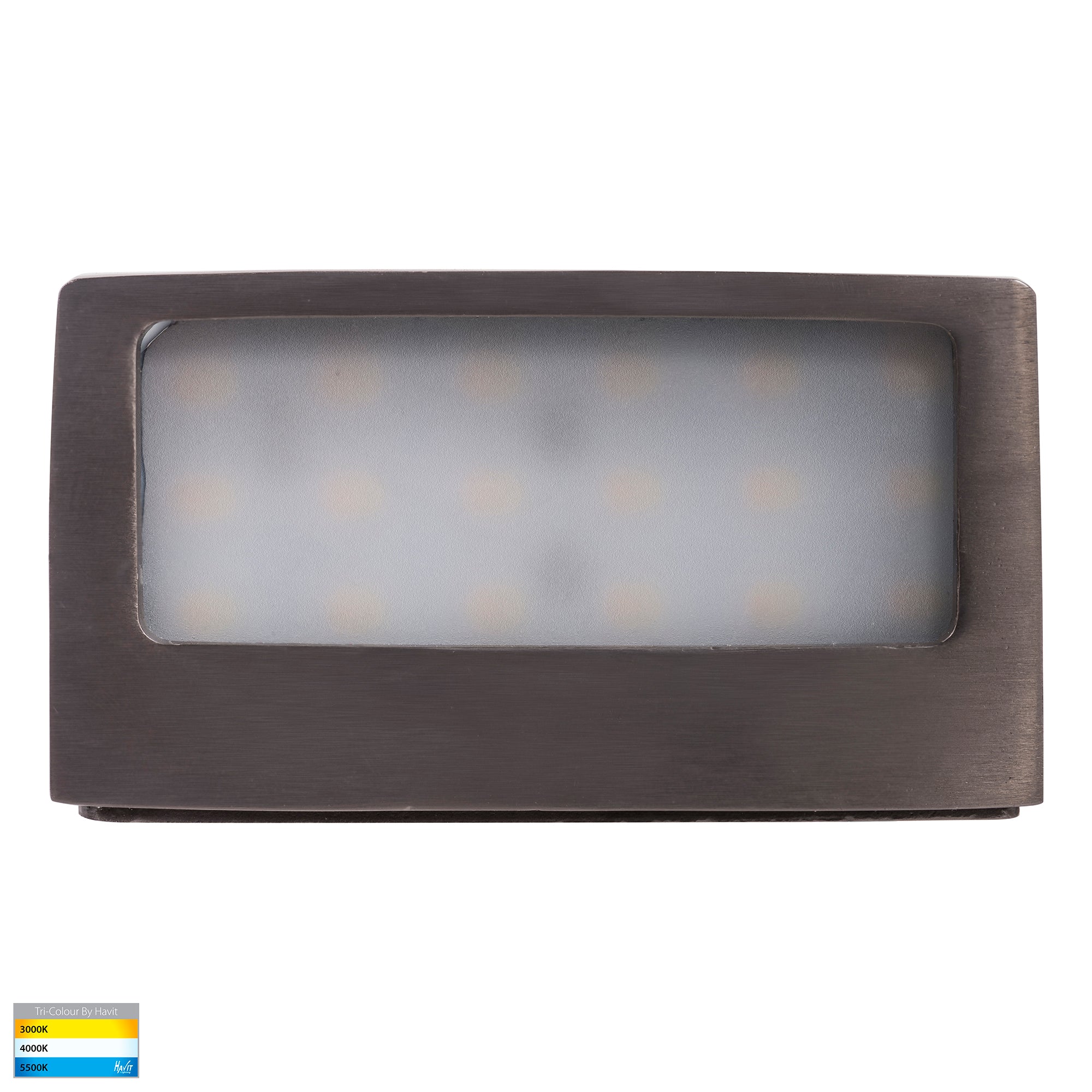

Ridge Graphite LED Step Light


$218.50 List price: $284.50
+

Weight: 0.500 kg

Product Name/Title: Ridge Graphite LED Step Light

Brand: Havit

SKU: HV3283T-GPH

Alternatively Known As: Graphite LED Step Light, Outdoor Step Light, TRI Colour Step Light

Technical Specifications
  • Input Voltage: 12v DC
  • Power Wattage: 6W
  • Lumens Output: 480lm, 500lm, 520lm
  • IP Rating: IP54
  • Colour Temperature: 3000k, 4000k, 5500k

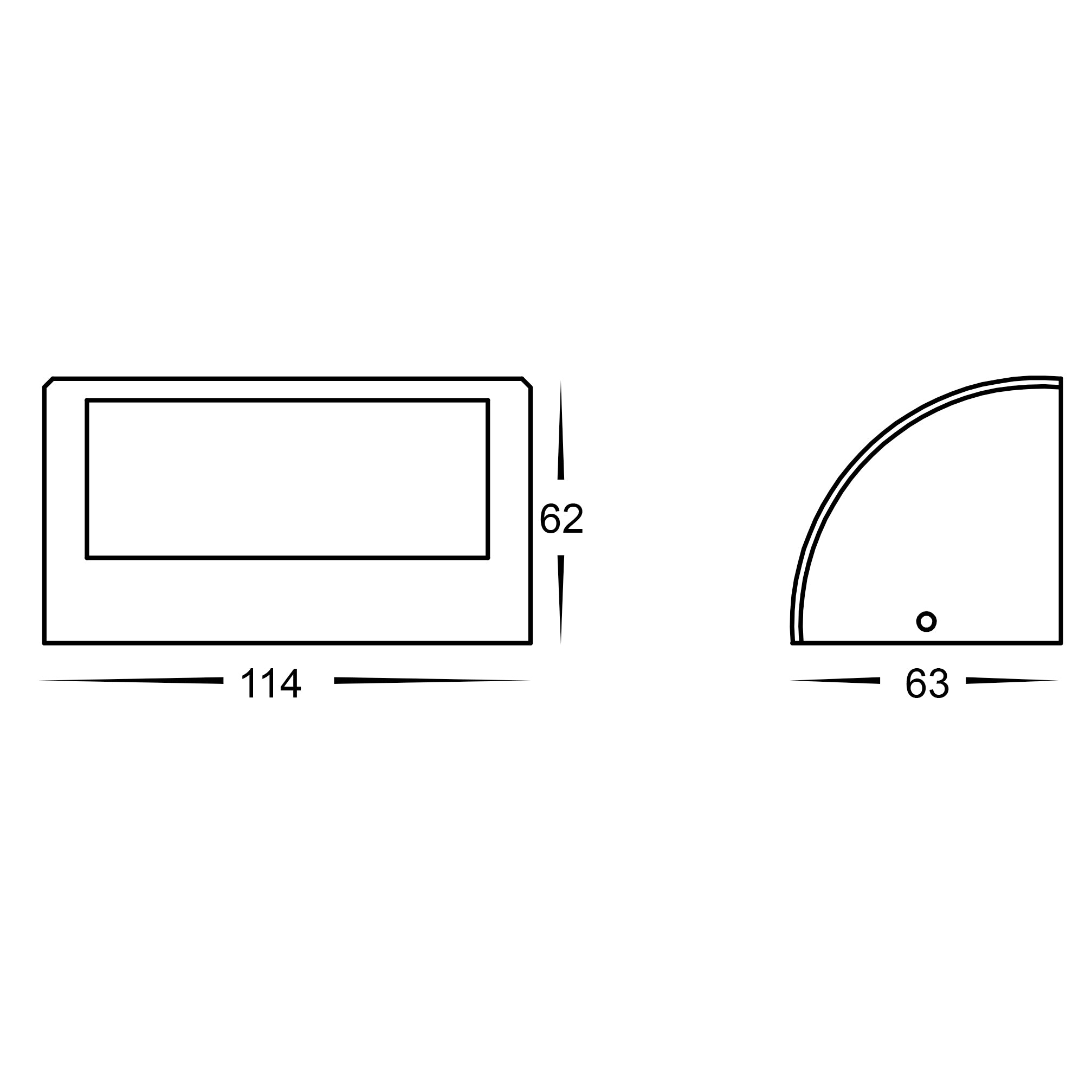

  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Graphite coloured solid brass construction.
  • IP54 rated for outdoor use.
  • TRI Colour options: 3000k, 4000k, 5500k.
  • Built-in 6w LED with high lumen output.
Professional Installation Requirements
  • Professional installation with a suitable 12v DC LED driver is recommended.
Applications
  • Residential: Homes, patios, walkways
  • Commercial: Outdoor spaces, gardens, pathways
  • General: Any outdoor location requiring step lighting
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Energy-efficient built-in LED reduces power consumption.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Ridge Graphite LED Step Light is available now for immediate purchase. Ideal for enhancing outdoor spaces with stylish lighting.

Data Sheet (HV3283_Data_Sheet_JAN23.pdf, 604 Kb) [Download]

Installation Instructions (HV3282_HV3283_Installation_Instructions_FEB22.pdf, 179 Kb) [Download]
